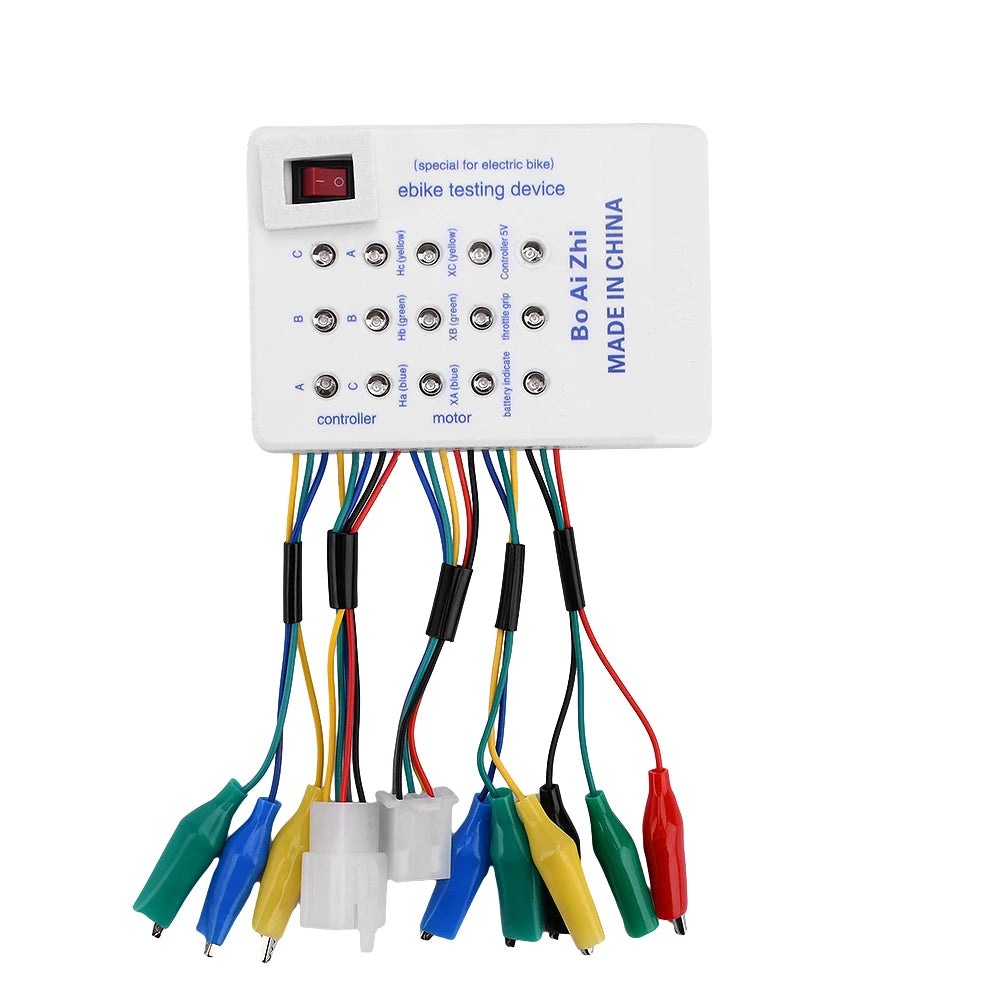

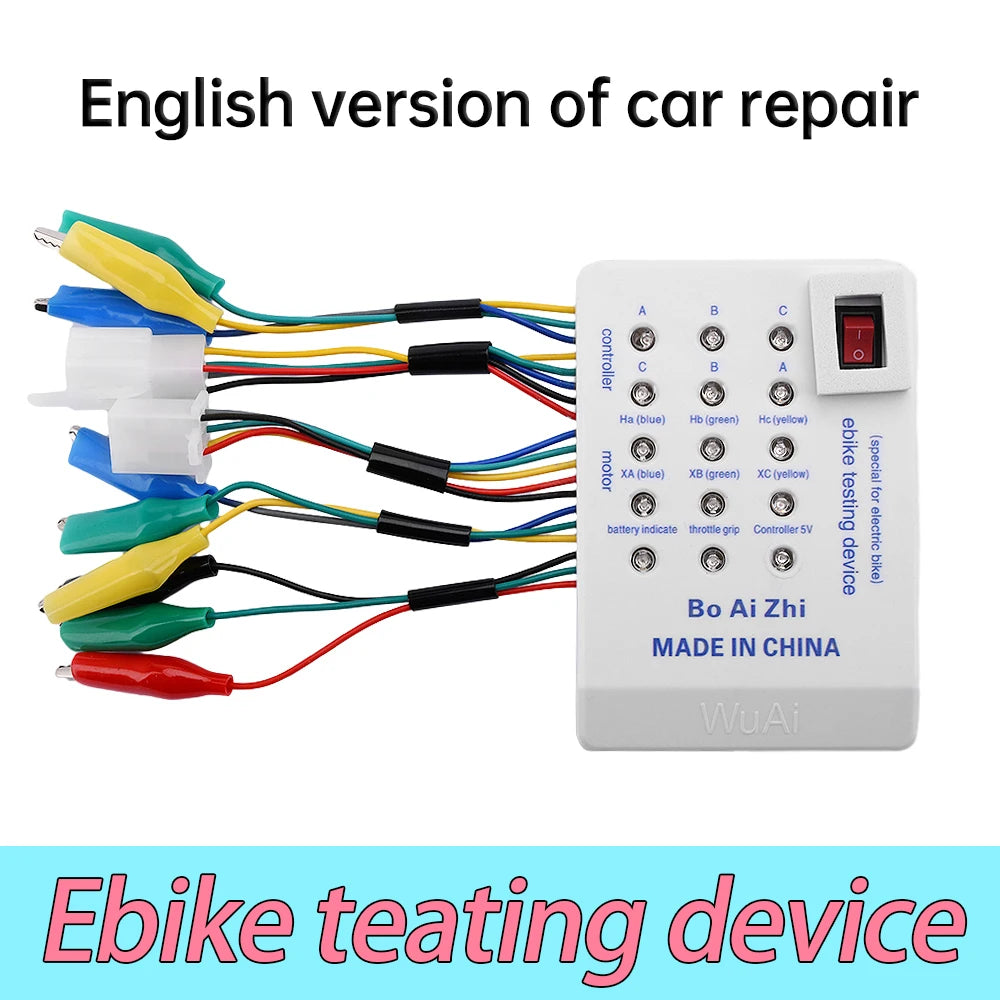

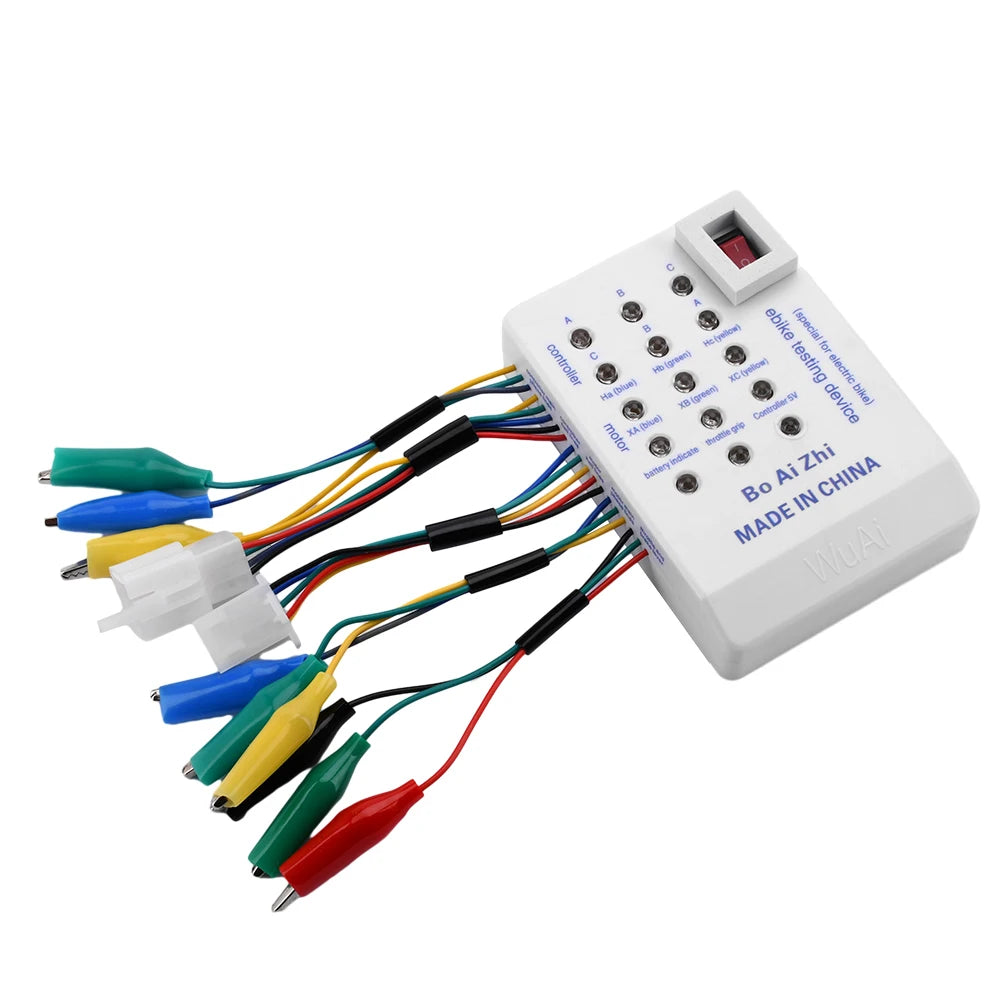

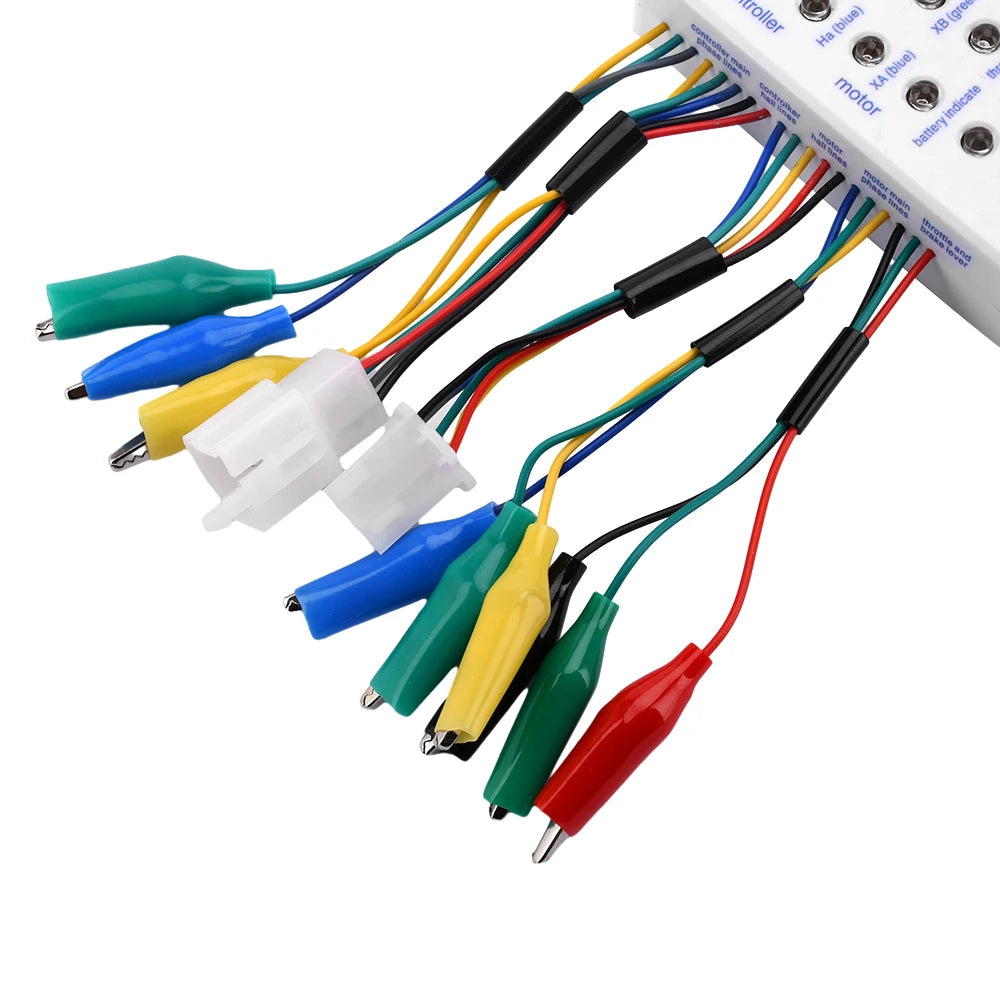

E-Bike Brushless Motor and Controller Tester 24V-72V

The E-Bike Tester is a multifunctional diagnostic device designed to help identify faults in brushless motors, Hall sensors, controllers and throttle systems. Suitable for electric bikes, scooters and other compatible electric vehicles, it provides a convenient solution for testing electrical components during maintenance and repairs.

Supporting 24V, 36V, 48V, 60V and 72V systems, the tester helps quickly identify wiring issues, motor winding faults, Hall sensor problems, controller faults and throttle functionality, making it a useful tool for e-bike repair workshops and DIY maintenance.

Specifications

• Compatible voltage: 24V / 36V / 48V / 60V / 72V

• Application: E-bike, electric scooter and electric vehicle maintenance

• Testing type: Electrical and electronic diagnostics

• Motor type: Brushless motor

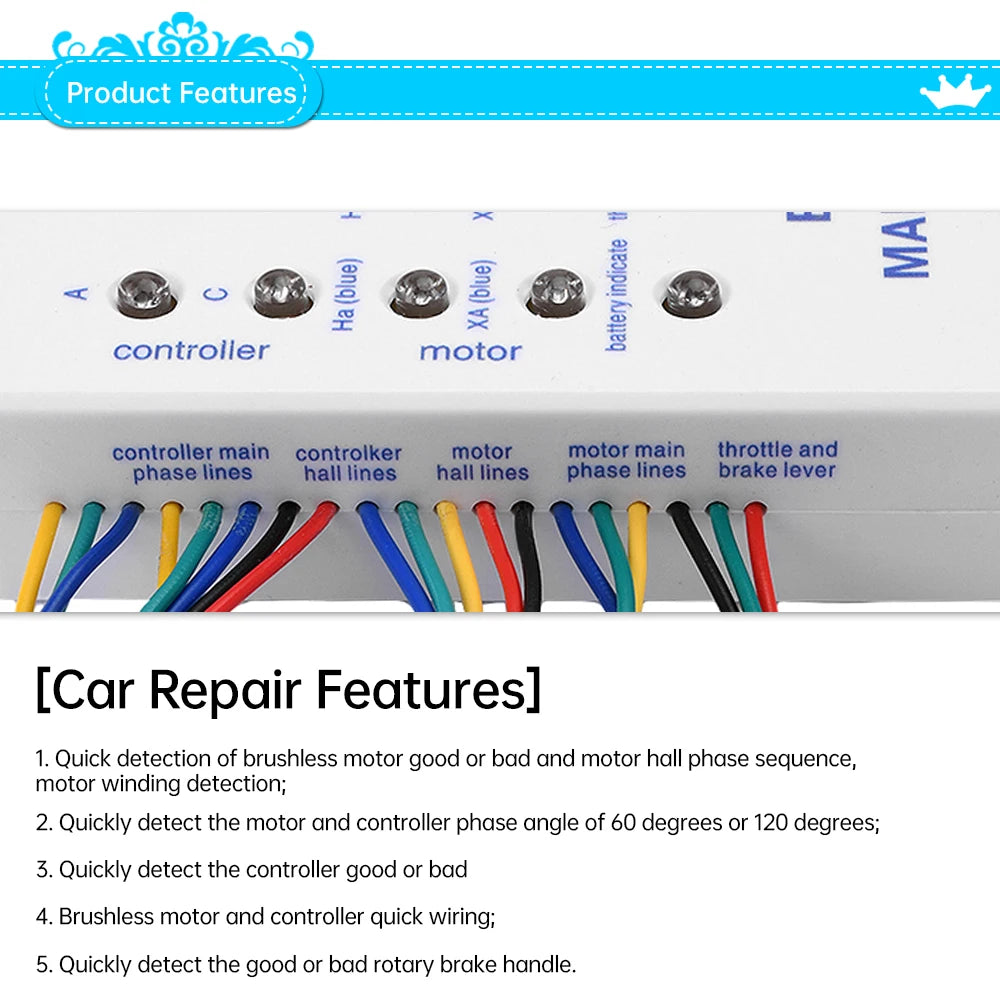

• Functions: Motor, Hall sensor, phase sequence, controller and throttle testing

• Package includes: 1 × Tester, 1 × Manual

• Packaging: Vacuum-formed card packaging

Motor and Hall Sensor Testing

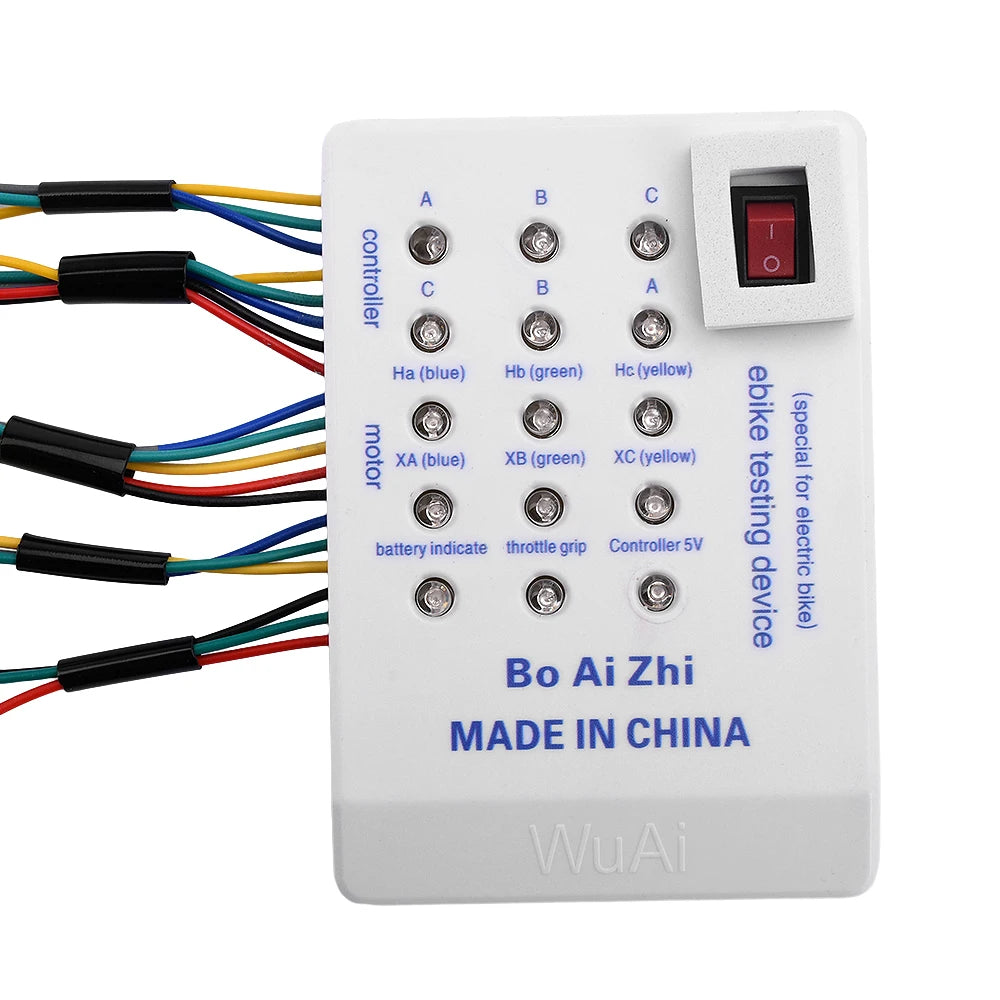

The tester can quickly check the condition of brushless motor windings and Hall sensors. During motor coil testing, the three signal lights indicate whether the motor windings are operating correctly as the motor is rotated.

The Hall detection function allows users to monitor the Hall sensor signals while slowly rotating the motor. The tester can also help identify whether the motor uses a 60° or 120° phase angle.

Phase Sequence Detection

The tester helps identify motor and controller phase sequences, making it easier to determine the correct wiring configuration between compatible brushless motors and controllers.

It can assist with checking both Hall phase sequence and winding phase sequence, helping simplify electrical troubleshooting and motor-controller wiring during repairs or conversions.

Controller Testing

Designed to test various compatible brushless motor controllers, the device can help identify issues with the controller's 5V output and signal operation.

When connected correctly, the tester's 5V indicator should illuminate when the controller is powered. The monitoring signal lights can then be used to check throttle operation and controller output signals, helping identify potential controller faults.

Throttle and Handlebar Testing

The tester also includes a dedicated handlebar throttle detection function. By connecting the tester to the throttle and operating it, the signal light should respond to throttle movement.

If the expected signal is not detected, this can indicate a potential issue with the throttle or its wiring, making the tester useful for diagnosing common e-bike electrical problems.

Easy E-Bike Maintenance

Combining several diagnostic functions in one compact device, the tester provides a practical way to troubleshoot electric bike and scooter electrical systems without requiring multiple separate testing tools.

It is suitable for DIY users, e-bike technicians, repair shops and anyone working with compatible brushless motors and controllers.

Important Usage Information

Power should only be switched on when performing Hall sensor or throttle detection. If the signal lights appear insufficiently bright, the tester battery should be replaced.

Always ensure the wiring and terminals are connected correctly before powering the system. Check the voltage and compatibility of your motor, controller and electrical components before use.
