LD200PLUS 2-Piston E-Bike Hydraulic Disc Brake Se

The LD200PLUS Hydraulic Disc Brake Set is a premium braking system designed for electric bikes and mountain bikes requiring dependable stopping power and integrated motor cut-off functionality. Featuring dual-piston hydraulic calipers, CNC-machined aluminium components and a 2-pin waterproof power-off sensor, it delivers responsive braking performance for both commuting and off-road riding.

Supplied as a complete kit with brake rotors, mounting adapters and hardware, the LD200PLUS is ideal for new builds, replacements and performance upgrades.

Dimensions

• Front hose length: 1000 mm (39.4 in)
• Rear hose length: 1850 mm (72.8 in)
• Rotor diameter: 180 mm (7.1 in)
• Rotor thickness: 2.3 mm (0.09 in)
• Sensor cable length: 300 mm (11.8 in)
• Weight: 1.6 kg (3.53 lb)

Performance

The LD200PLUS features dual-piston hydraulic calipers that provide smooth braking response with excellent modulation and consistent stopping power across a variety of riding conditions.

The oversized 2.3 mm brake rotors and enlarged sintered metal brake pads increase braking efficiency, improve heat resistance and extend component life compared with standard brake systems.

Key performance specifications:

• Dual-piston hydraulic braking system
• Pre-filled with mineral oil for immediate installation
• CNC-machined aluminium calipers
• Closed hydraulic system for reliable performance
• Thickened stainless steel brake rotors
• Sintered metal brake pads for enhanced durability

Safety and Features

Designed specifically for electric bikes, the LD200PLUS incorporates a 2-pin waterproof motor cut-off sensor that automatically interrupts motor power whenever the brake lever is applied, improving rider safety and braking control.

Additional features include:

• Adjustable brake lever reach for personalised comfort
• CNC-machined aluminium construction for strength and durability
• Mineral oil hydraulic system requiring no initial bleeding
• Rear brake hose supplied separately from the lever for easier internal cable routing
• Complete installation kit including:
  • Front and rear hydraulic brakes
  • Two 180 mm brake rotors
  • Three mounting adapters
  • Mounting bolts and hardware

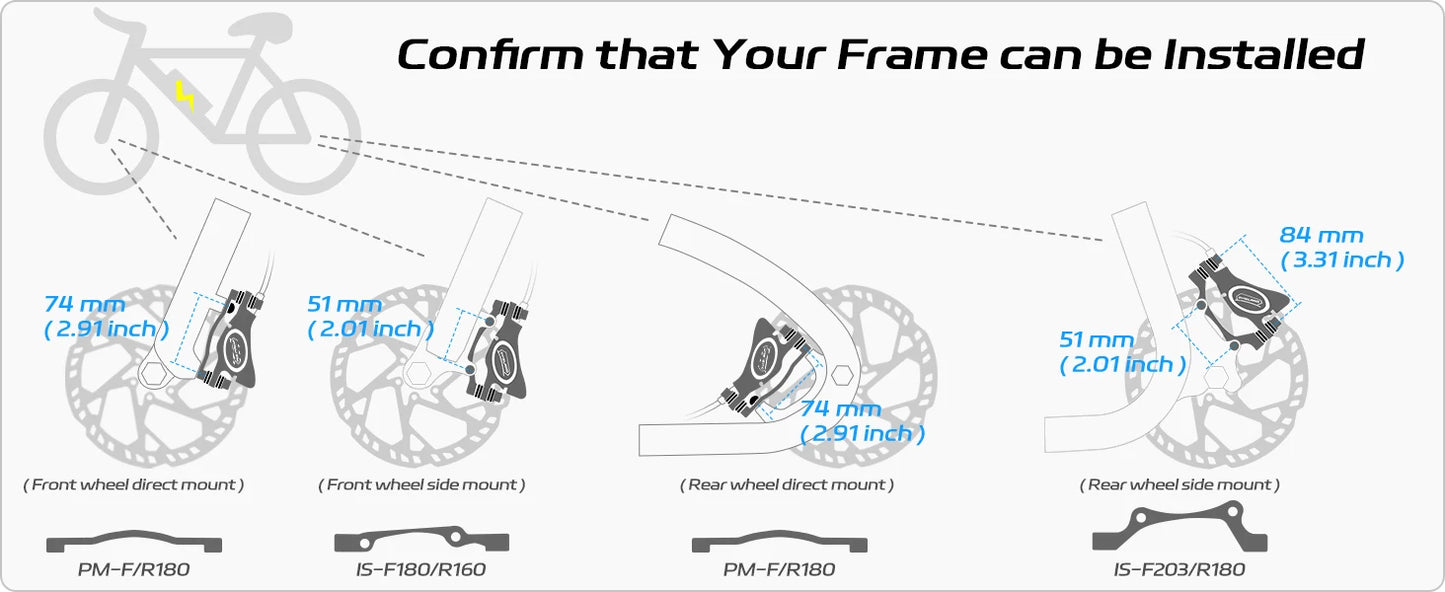

Please Note: The left brake lever controls the front brake and the right brake lever controls the rear brake. Always confirm compatibility with your frame, mounting standard and motor connector before purchasing.

Please note: Before purchasing the product, please ensure that your frame is compatible with the installation of this product
