KOLANKY EV Charging Adapter Type 1 / Type 2 / GB/

The KOLANKY EV Charging Adapter provides a convenient way to connect compatible electric vehicles and AC charging equipment using different charging connector standards.

Available in multiple configurations, the adapter range supports connections between Type 1, Type 2 and GB/T AC charging interfaces, with options including Type 2 to Type 1, Type 1 to Type 2, GB/T to Type 2, Type 2 to GB/T and Type 1 to GB/T.

With support for up to 32A, the adapters can accommodate charging applications of up to 7.2kW on single-phase systems or 22kW on three-phase systems, subject to the capabilities of the vehicle, charging equipment and electrical installation.

Adapter Configurations

Type 2 to Type 1

Connects a Type 2 charging connector to a vehicle equipped with a Type 1 / SAE J1772 inlet.

Type 1 to Type 2

Connects a Type 1 / SAE J1772 charging connector to a vehicle equipped with a Type 2 inlet.

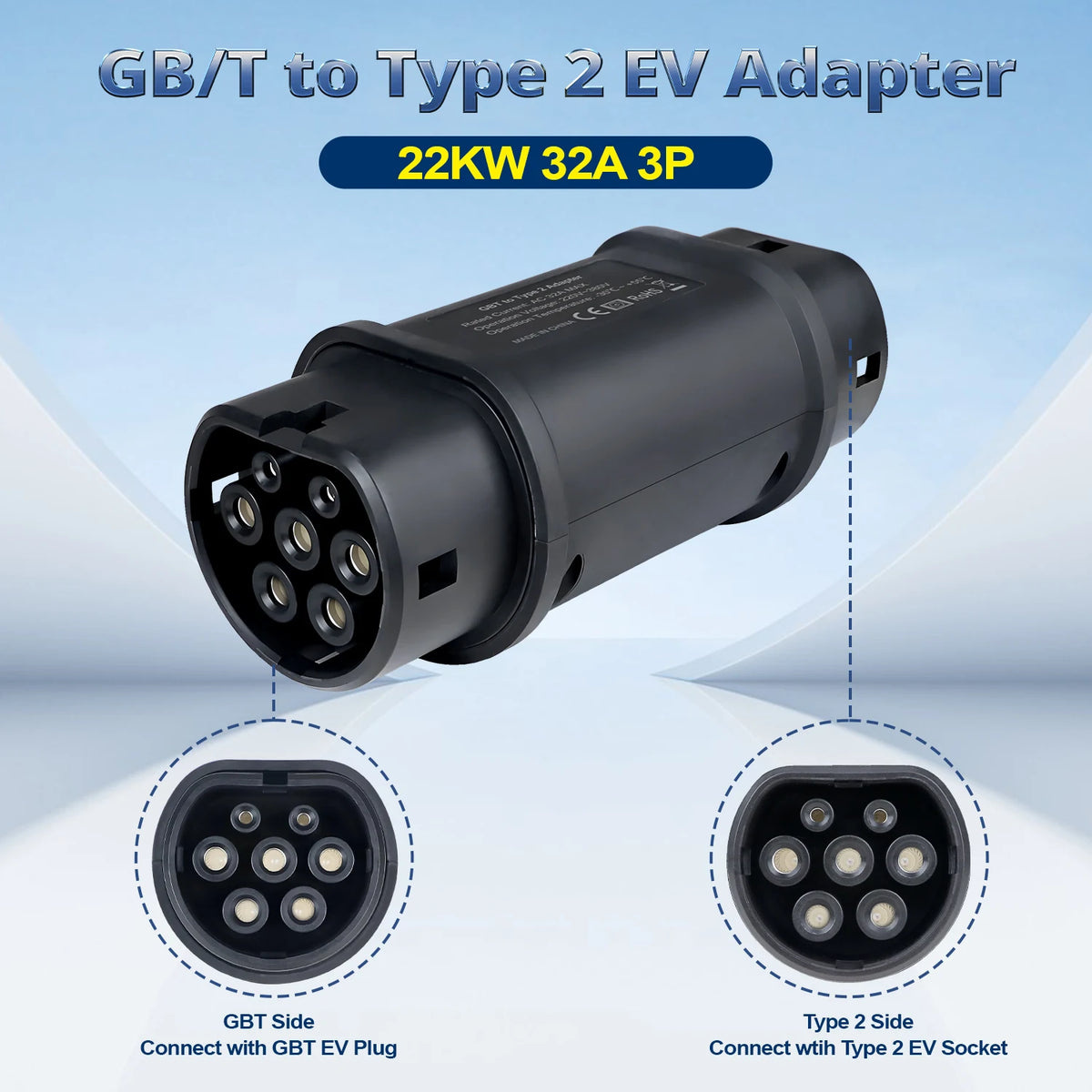

GB/T to Type 2

Connects compatible GB/T AC charging equipment to a vehicle equipped with a Type 2 inlet.

Type 2 to GB/T

Connects a Type 2 charging connector to a vehicle equipped with a compatible GB/T AC charging inlet.

Type 1 to GB/T

Connects a Type 1 / SAE J1772 charging connector to a compatible vehicle equipped with a GB/T AC charging inlet.

Select the correct adapter configuration for the connector on your charging equipment and the charging inlet on your vehicle.

Performance

• Maximum Current: 32A
• Maximum Single-Phase Power: Up to 7.2kW
• Maximum Three-Phase Power: Up to 22kW
• Voltage: 220–250V / 380–450V AC
• Charging Type: AC
• Cable: No cable, rigid adapter design
• Wireless Connectivity: None

Actual charging power depends on the selected adapter, vehicle, charging equipment, onboard charger and electrical supply.

Build Quality

The adapter is constructed using a robust PC+ABS thermoplastic housing with a UL94 V-0 flame-retardant rating.

The terminals use silver-plated copper alloy contacts, providing a durable connection for compatible AC charging applications.

• Housing: PC + ABS
• Terminal: Copper alloy with silver plating
• Flame Retardant Rating: UL94 V-0
• Weight: Approximately 0.5kg
• Cable: None

Safety & Protection

The adapter is designed for reliable use in a range of environmental conditions and incorporates:

• IP54 protection
• UL94 V-0 flame-retardant housing
• Silver-plated copper alloy terminals
• Dust protection
• Protection against water splashes
• Operating temperature from -30°C to +55°C

The adapter should always be used with compatible charging equipment and within its specified electrical ratings.

Compatibility

The available configurations cover the following connector combinations:

Important: Connector standards are not interchangeable simply based on physical compatibility. Confirm the exact connector type and AC charging requirements of both the vehicle and charging equipment before use.

Specifications

Package Includes

• 1 × KOLANKY EV Charging Adapter in the selected configuration

Important Notes

• This is an adapter only and does not include a charging cable.
• Select the correct adapter configuration based on the connector on your charging equipment and the inlet on your vehicle.
• Maximum charging power is dependent on the vehicle, charging equipment, adapter configuration and electrical supply.
• The stated 22kW maximum applies to compatible three-phase charging configurations. Single-phase charging is limited to the applicable power rating.
• Do not exceed the adapter's 32A maximum current rating.
• Inspect the adapter and connectors before every use. Do not use if damaged, cracked, overheated or otherwise compromised.
• Use only with compatible AC charging systems and in accordance with the vehicle and charging equipment manufacturer's requirements.
