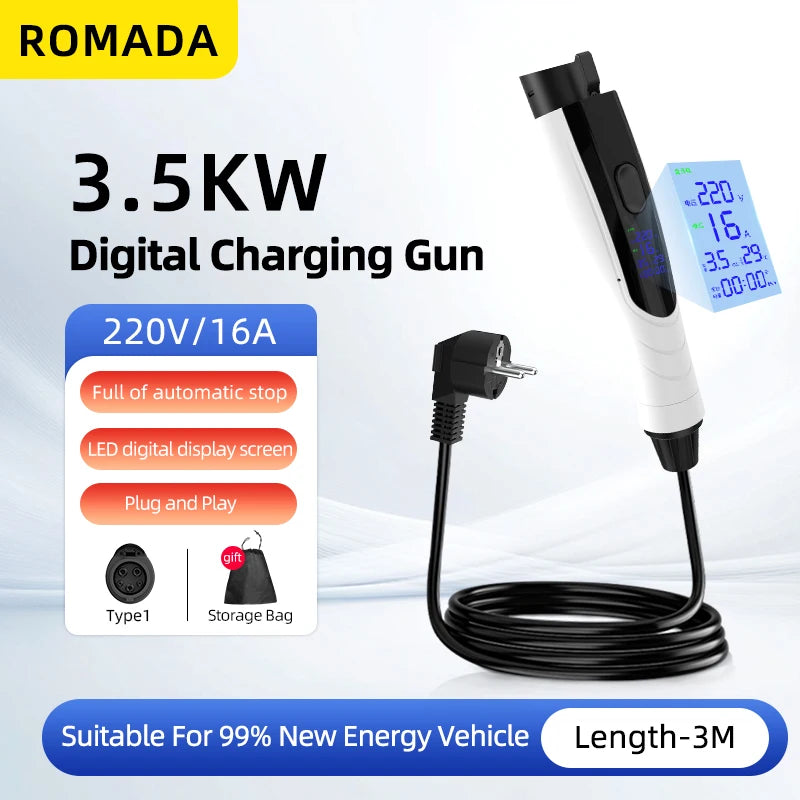

ROMADA 16A 3.5kW Portable Type 1 EV Charger

General Details

The ROMADA 16A 3.5kW Portable EV Charger is a Level 2 charging solution for electric vehicles and plug-in hybrids equipped with a Type 1 / SAE J1772 charging inlet.

Designed for single-phase AC charging at up to 16A and 3.5kW, the charger provides adjustable current settings of 8A, 10A, 13A and 16A, allowing users to select an appropriate charging level for their electrical supply.

The portable control box features an OLED display for monitoring charging information, while integrated safety protections help protect against over-current, over-voltage, under-voltage, leakage and overheating. Available cable lengths provide flexibility for home garages, driveways and other suitable charging locations.

Performance

• Maximum Charging Power: 3.5kW
• Maximum Charging Current: 16A
• Adjustable Current: 8A / 10A / 13A / 16A
• Input Voltage: 110V–240V AC
• Rated Voltage: 220V AC
• Charging Type: Level 2 AC
• Phase: Single phase
• Vehicle Connector: Type 1 / SAE J1772
• Plug Type: EU plug
• Cable Length Options: 3m / 5m / 10m
• Operating Temperature: -30°C to +55°C
• Protection Rating: IP65 during operation

Adjustable Charging Current

The ROMADA charger provides four selectable charging current levels:

• 8A
• 10A
• 13A
• 16A

The current should be selected before connecting the charger to the vehicle. This allows users to match the charging load to the available electrical circuit and outlet.

The charger retains the selected current setting for subsequent charging sessions according to the supplied product information.

OLED Display

The portable control box features an integrated OLED display that allows users to monitor charging information during operation.

The display and status indicators provide information relating to:

• Charging status
• Charging parameters
• Current charging stage
• Error conditions
• Other available charging data

Indicator lights provide additional visual information during the charging process.

Safety & Protection

The ROMADA charger incorporates multiple protection systems designed to provide safer charging operation.

Features include:

• Over-current protection
• Over-voltage protection
• Under-voltage protection
• Leakage protection
• Overheating protection
• Automatic power cutoff when fully charged
• Emergency reset function
• Charging status and error indicators
• Fire-resistant ABS+PC housing
• IP65-rated protection during operation

The charger is designed to automatically monitor the charging connection and can interrupt charging when abnormal conditions are detected.

Build Quality

The control box is constructed from ABS+PC fire-resistant material, while the charging connector uses silver-plated copper alloy contacts.

The cable is designed for regular handling and is available in multiple lengths to suit different charging environments.

The charging connector is supplied with a protective cover to help keep the interface clean when not in use.

The connector is rated for more than 10,000 plugging and unplugging cycles according to the supplied specifications.

Compatibility

The ROMADA charger uses the Type 1 / SAE J1772 charging standard and is designed for compatible electric vehicles and plug-in hybrids.

It is suitable for vehicles equipped with a Type 1 AC charging inlet.

Please check your vehicle's charging connector and electrical requirements before ordering.

Specifications

Package Includes

• 1 × ROMADA Portable EV Charger
• 1 × Type 1 / SAE J1772 Charging Cable
• 1 × EU Power Plug
• 1 × Portable Control Box
• User documentation

Important Notes

• This charger uses a Type 1 / SAE J1772 vehicle connector. Confirm that your vehicle is equipped with a compatible charging inlet before ordering.
• Cable length is selectable. Available options supplied are 3m, 5m and 10m.
• Select the required charging current before connecting the charger to the vehicle.
• Maximum 3.5kW output requires an appropriate electrical supply and compatible vehicle.
• Actual charging speed depends on the vehicle's onboard charger, electrical supply and selected current setting.
• Always select a current appropriate for the capacity of the electrical circuit and outlet being used.
• The charger should be connected to a properly grounded electrical supply.
• Do not use the charger if the cable, connector, plug or control box is damaged.
• IP65 protection does not mean the charger can be submerged or exposed to standing water.
• Outdoor charging should be performed with electrical connections appropriately protected from water and other environmental hazards.
• The supplied information contains both IP66 and IP65 references. The detailed specifications state IP65 during operation, which has been used as the primary rating in this listing.
