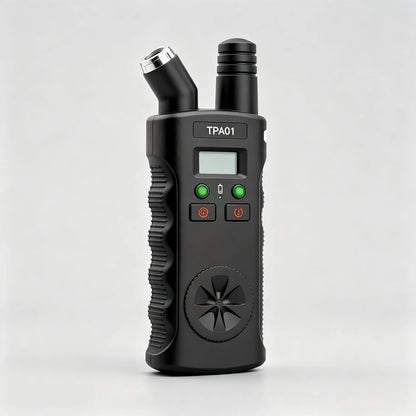

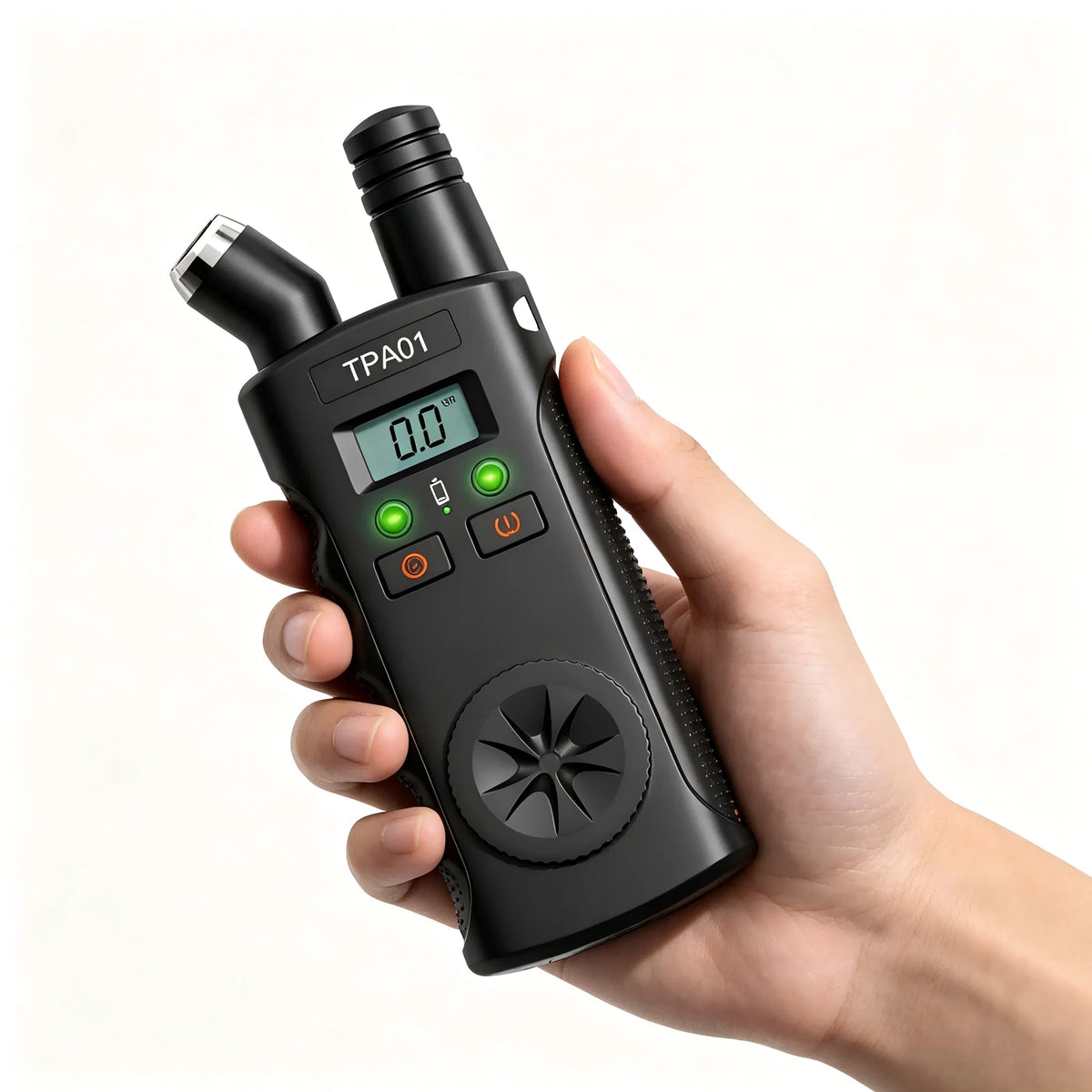

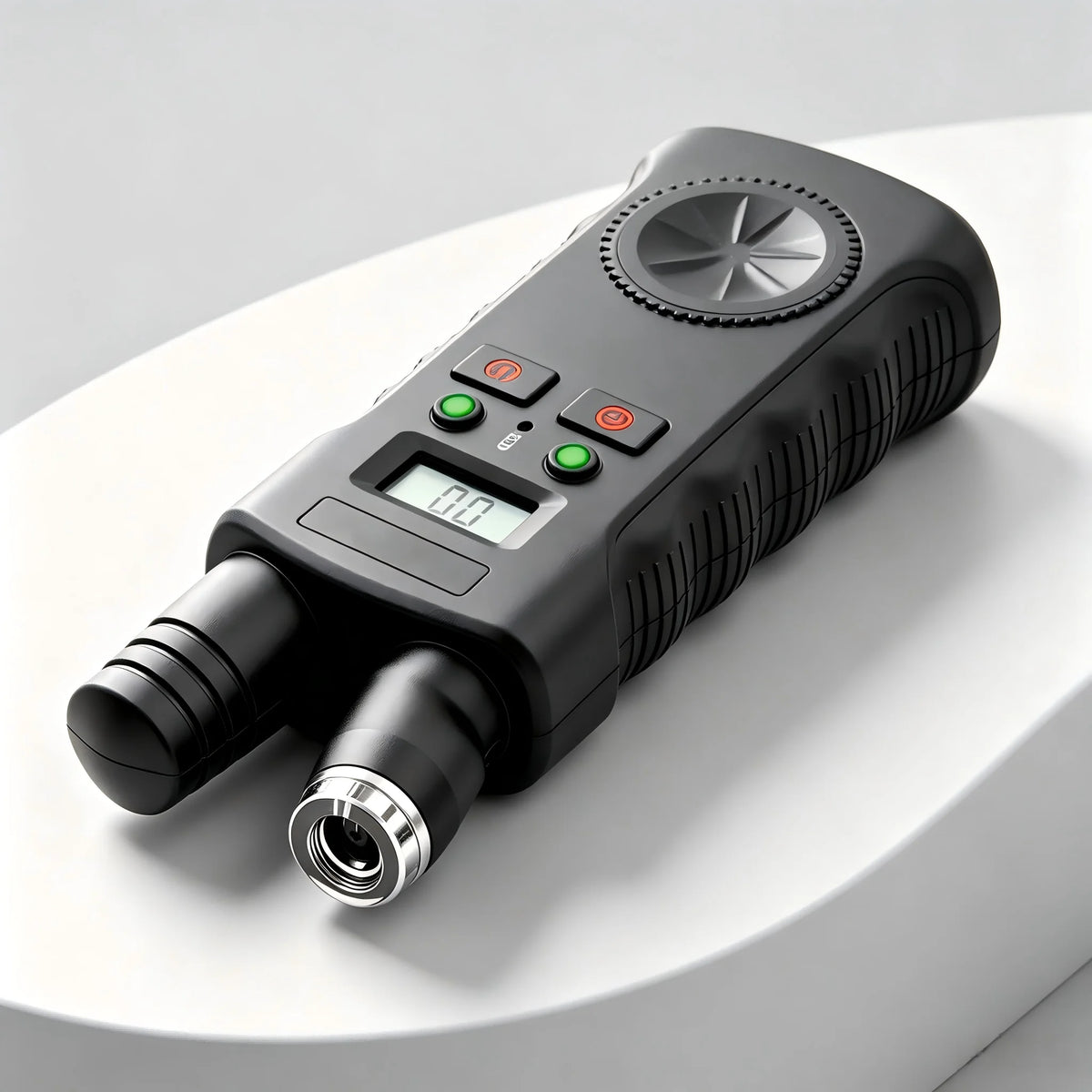

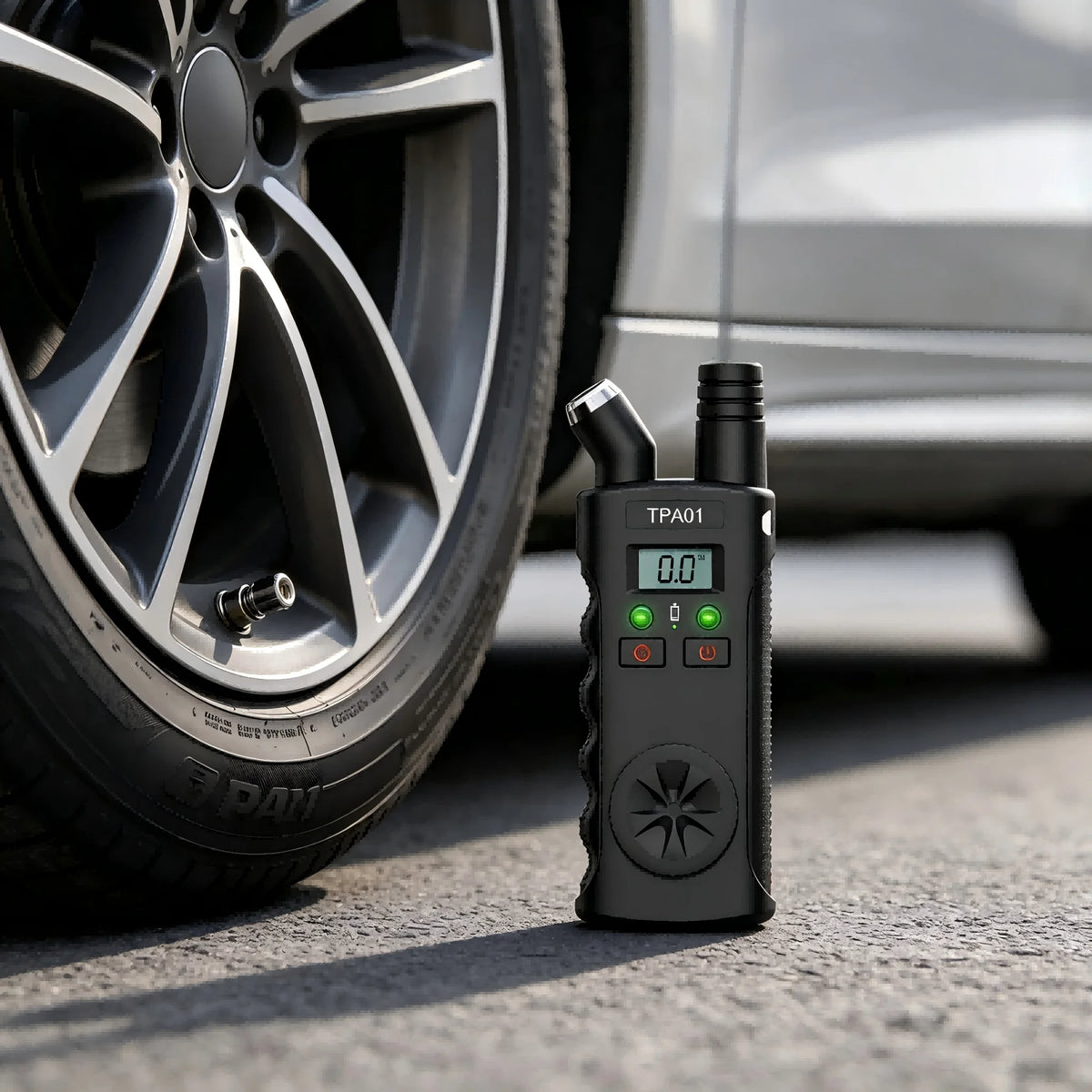

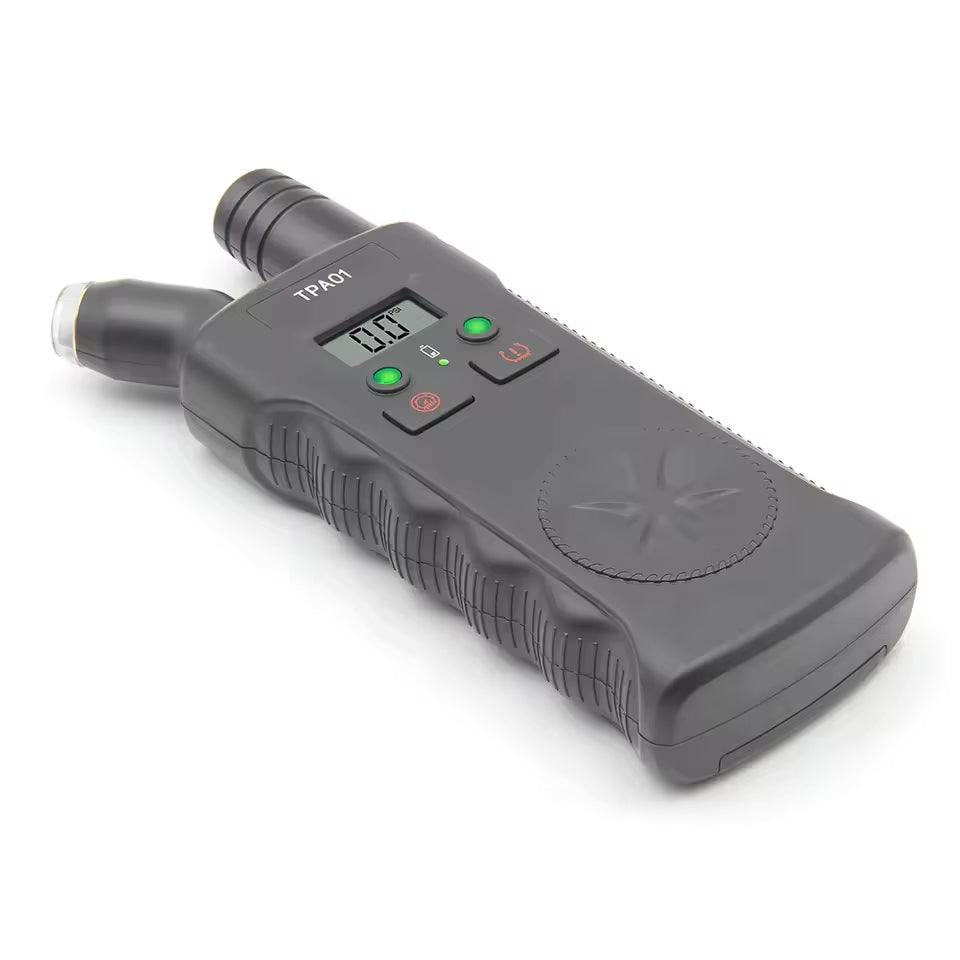

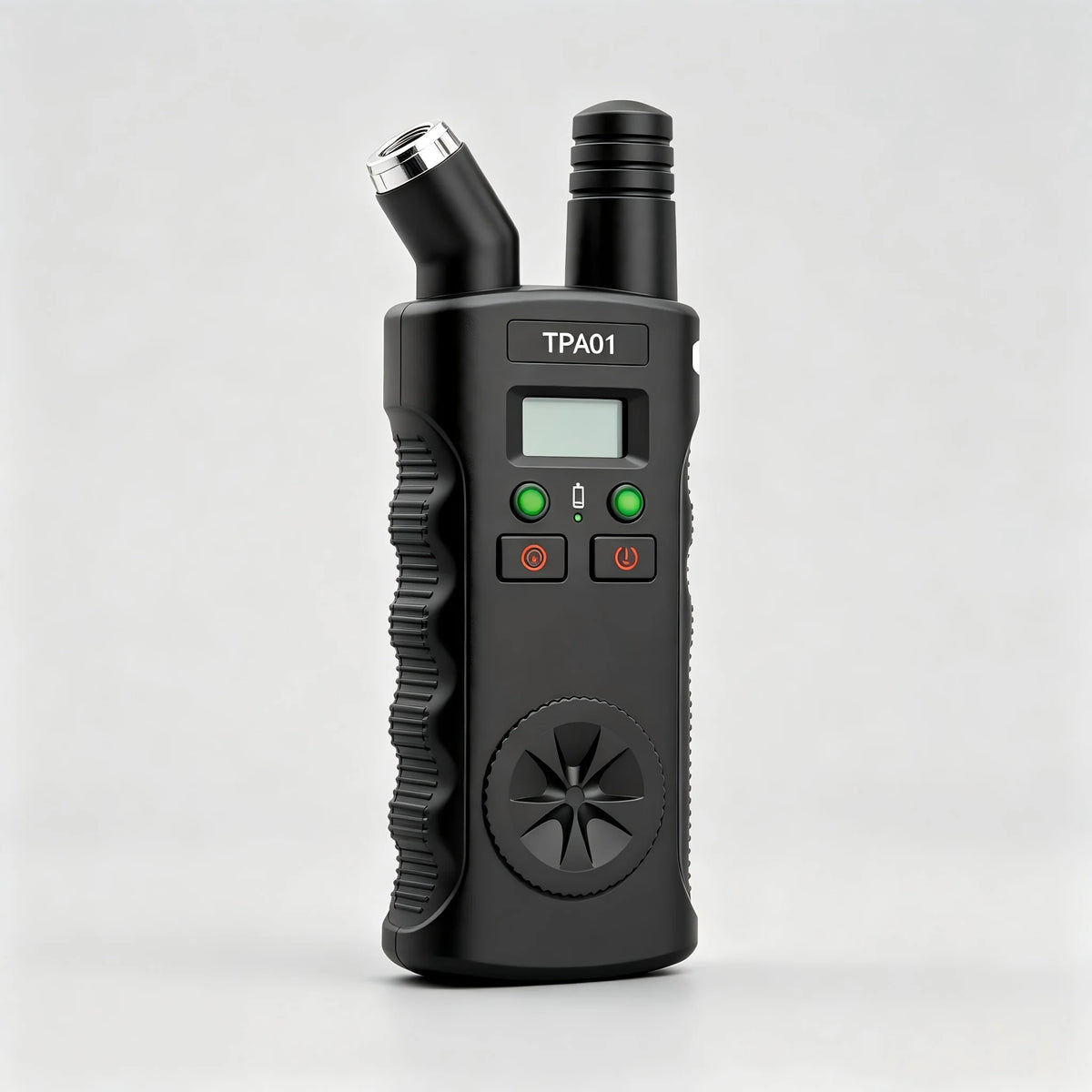

TPA01 TPMS Relearn Tool & Digital Tyre Pressure Gauge

2-in-1 TPMS Sensor Reset Tool with Digital Pressure Gauge for Compatible GM Vehicles, Cars, Motorcycles and Bicycles

The TPA01 TPMS Relearn Tool combines a tyre pressure monitoring system relearn function with a digital tyre pressure gauge, providing a convenient tool for compatible vehicle maintenance.

Designed primarily for General Motors vehicles equipped with 315 MHz or 433 MHz TPMS systems, the tool can assist with TPMS sensor relearning while also providing digital tyre pressure readings for cars, motorcycles and bicycles.

General Details

• Model: TPA01
• Product Type: TPMS Relearn Tool & Digital Tyre Pressure Gauge
• Brand: Unbranded
• TPMS Frequency: 315 MHz / 433 MHz
• Primary Vehicle Compatibility: Compatible GM vehicles with supported TPMS systems
• Pressure Range: 0-150 PSI / 0-7 bar / 0-700 kPa / 0-7 kgf/cm²
• Pressure Resolution: 0.05 increments
• Pressure Units: PSI / BAR / KPA / KG/CM²
• Display: Digital
• Auto Shut-Off: Approx. 30 seconds
• Battery: Replaceable 9V battery
• Battery Included: No
• Certifications: CE / RoHS

2-in-1 TPMS & Pressure Gauge

The TPA01 combines two useful tyre maintenance functions in one handheld device.

The TPMS relearn function can be used to trigger compatible TPMS sensors when the vehicle has been placed into its TPMS learning mode.

The integrated digital pressure gauge can also measure tyre pressure across a wide range of applications.

TPMS Sensor Relearn

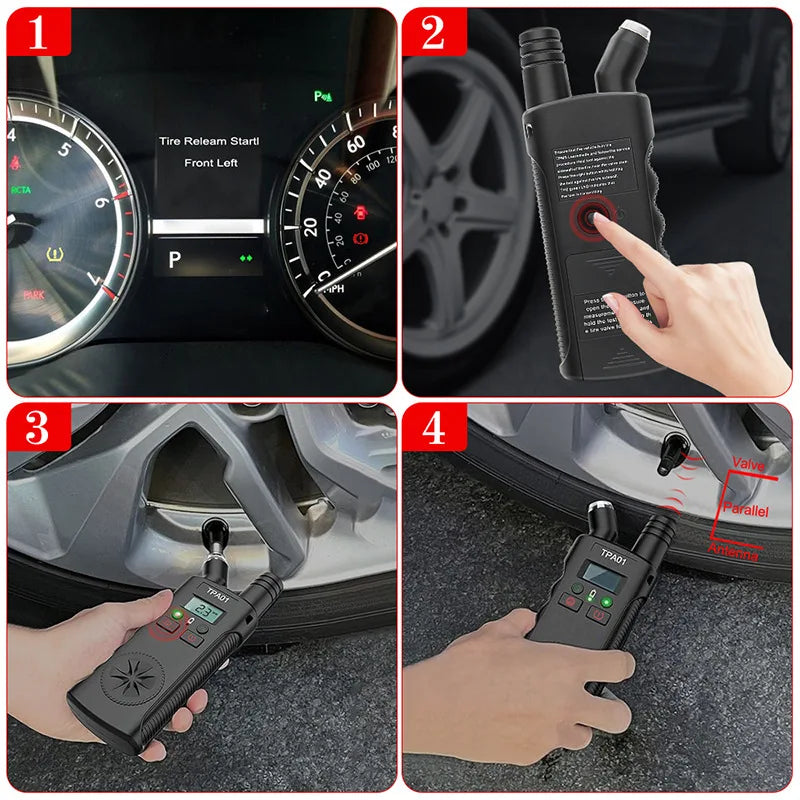

For supported vehicles, the TPMS function provides a simple three-step relearning process:

• Place the vehicle into TPMS Learn Mode.
• Position the TPMS antenna against the tyre sidewall near the valve stem.
• Press the activation button while holding the tool in position.

The tool is designed for compatible General Motors vehicles using supported 315 MHz or 433 MHz TPMS systems, including certain Chevrolet, Buick, GMC, Opel and Cadillac models.

Vehicle compatibility should be confirmed before purchase, as TPMS systems and relearn procedures vary between vehicles and model years.

Digital Tyre Pressure Gauge

The integrated pressure gauge provides digital readings across a range of pressure units:

• PSI: 0-150 PSI
• BAR: 0-7 bar
• KPA: 0-700 kPa
• KGF/CM²: 0-7 kgf/cm²

The unit automatically resets its pressure measurement when taking a new reading, eliminating the need for manual calibration or resetting between measurements.

Wide Application Range

The pressure gauge can be used for:

• Cars
• Motorcycles
• Bicycles
• Compatible vehicle tyres
• General tyre pressure maintenance

It can also be used to check pressure before or after inflation and to help identify tyres requiring additional air.

Easy Pressure Monitoring

The digital display provides an easy-to-read pressure reading while the selectable measurement units allow you to use the unit with different pressure specifications.

The gauge can also be used to check pressure while releasing excess air from an over-inflated tyre.

Battery-Saving Design

The tool features an automatic shut-off function that switches the device off after approximately 30 seconds of inactivity.

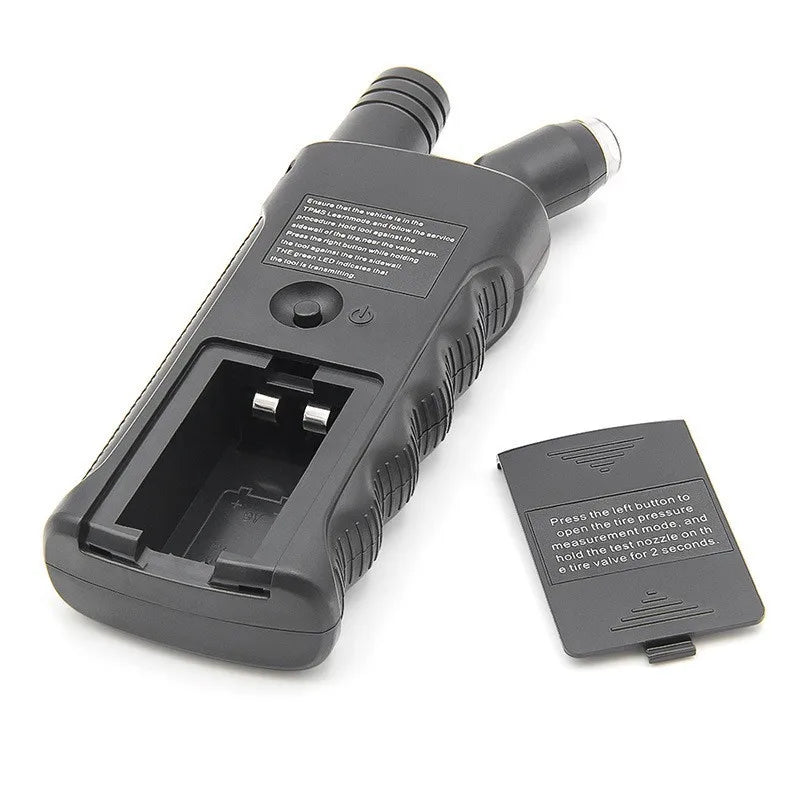

It uses a replaceable 9V battery, allowing the battery to be replaced when required.

A 9V battery is not included.

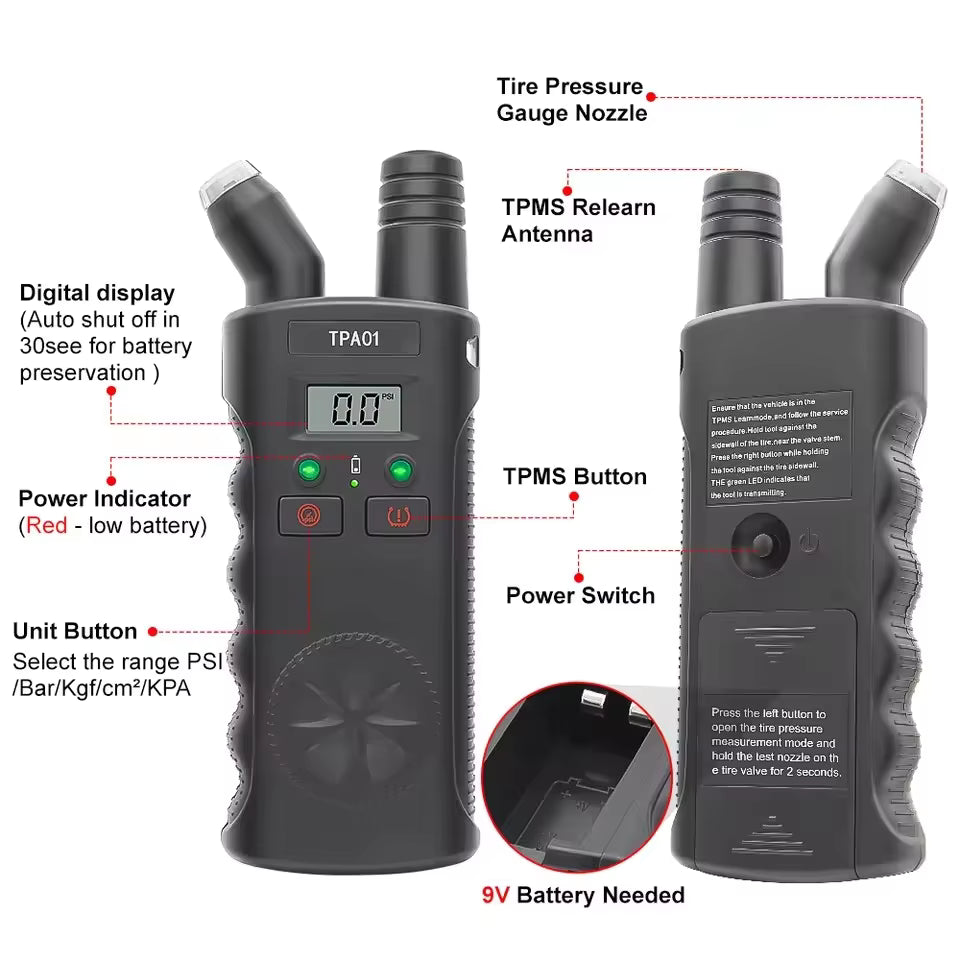

Specifications

• Model: TPA01
• Product Type: TPMS Relearn Tool / Digital Tyre Pressure Gauge
• Brand: Unbranded
• TPMS Frequency: 315 MHz / 433 MHz
• Pressure Range: 0-150 PSI
• Bar Range: 0-7 bar
• KPA Range: 0-700 kPa
• KGF/CM² Range: 0-7 kgf/cm²
• Pressure Resolution: 0.05 increments
• Pressure Units: PSI / BAR / KPA / KG/CM²
• Display: Digital
• Auto Shut-Off: Approx. 30 seconds
• Battery: Replaceable 9V
• Battery Included: No
• Certifications: CE / RoHS

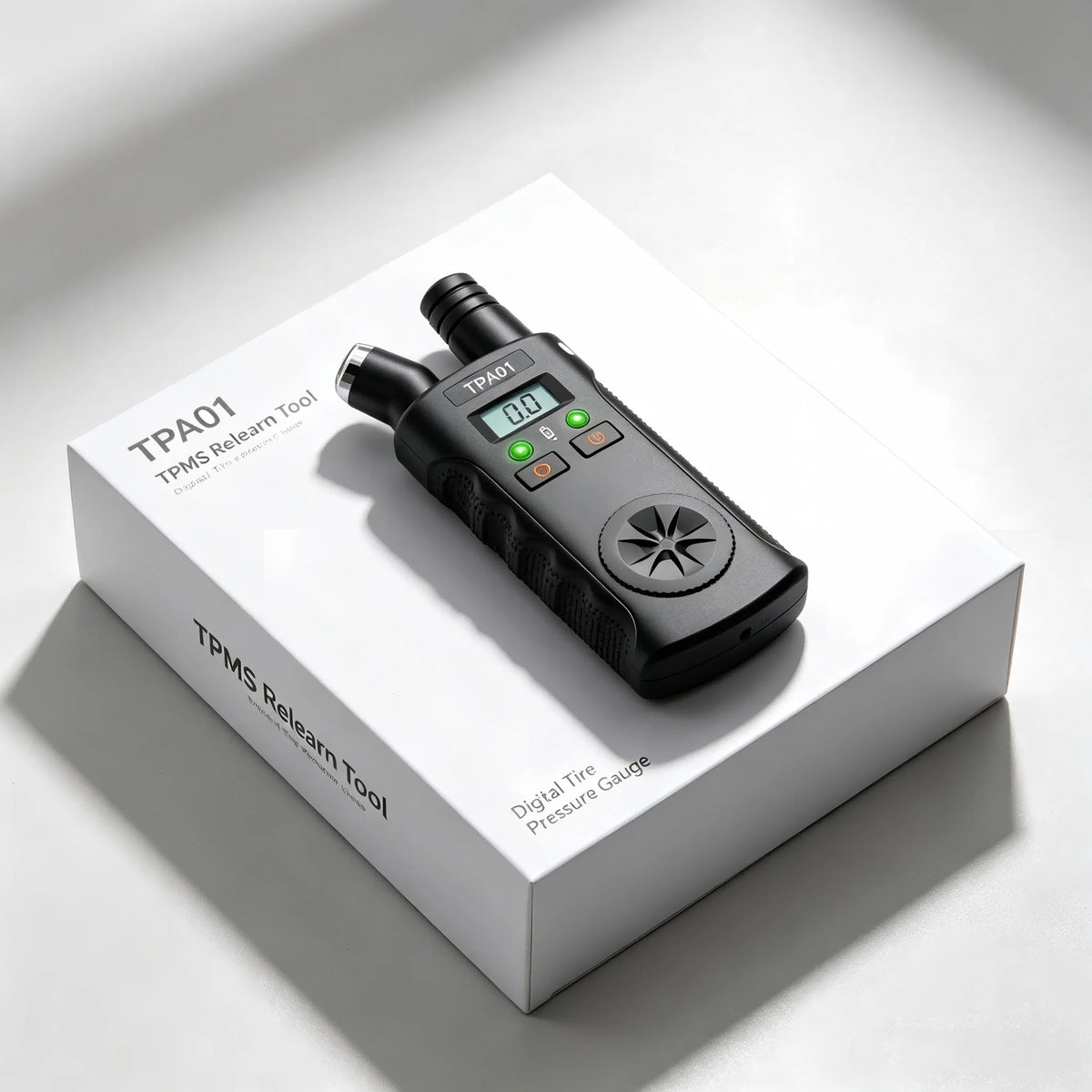

Package Includes

• 1 × TPA01 TPMS Relearn Tool & Digital Pressure Gauge

9V battery is not included.

Important Notes

The TPMS relearn function is intended primarily for compatible General Motors vehicles equipped with supported 315 MHz or 433 MHz TPMS systems. Compatibility varies by vehicle make, model, year and TPMS configuration.

This is a TPMS sensor activation/relearn tool, not a full diagnostic scanner. It does not replace a professional diagnostic tool for systems requiring additional programming or fault diagnosis.

The vehicle must be placed into the appropriate TPMS Learn Mode before using the relearn function.

Always verify the correct tyre pressure recommended by the vehicle or tyre manufacturer.

The digital gauge is suitable for pressure measurement on cars, motorcycles and bicycles, but actual accuracy may vary depending on the valve connection and operating conditions.

A new 9V battery is required for operation and is not included.
