Type 2 V2L Discharge Adapter 16A 3.5kW

The Type 2 V2L Discharge Adapter allows compatible electric vehicles with Vehicle-to-Load (V2L) functionality to provide AC power to external electrical equipment.

Designed for vehicles with a compatible Type 2 charging port and native V2L discharge capability, the adapter converts the vehicle's V2L output into a standard AC socket for powering suitable external devices.

With a stated maximum output of 16A and up to 3.5kW at 220V, it can provide portable power for a range of compatible equipment and devices.

V2L Power Output

The adapter is designed to draw AC power from an EV that supports V2L discharge.

• Maximum Current: Up to 16A
• Maximum Power: Up to 3.5kW
• Nominal Voltage: 220V AC
• Output: AC socket
• Connection: Type 2

Actual power availability is determined by the vehicle's V2L system. The vehicle must support V2L output through its Type 2 port for the adapter to function.

Compatibility

The adapter is intended for Type 2 vehicles with native V2L functionality.

The supplier identifies compatibility with selected vehicles from manufacturers including:

• BYD
• MG
• Geely
• Jaecoo

Example vehicles identified by the supplier include the Geely EX5 and Jaecoo J7 and more.

Important: Type 2 compatibility alone does not mean that a vehicle supports V2L. The vehicle must specifically support AC power discharge through its Type 2 connection.

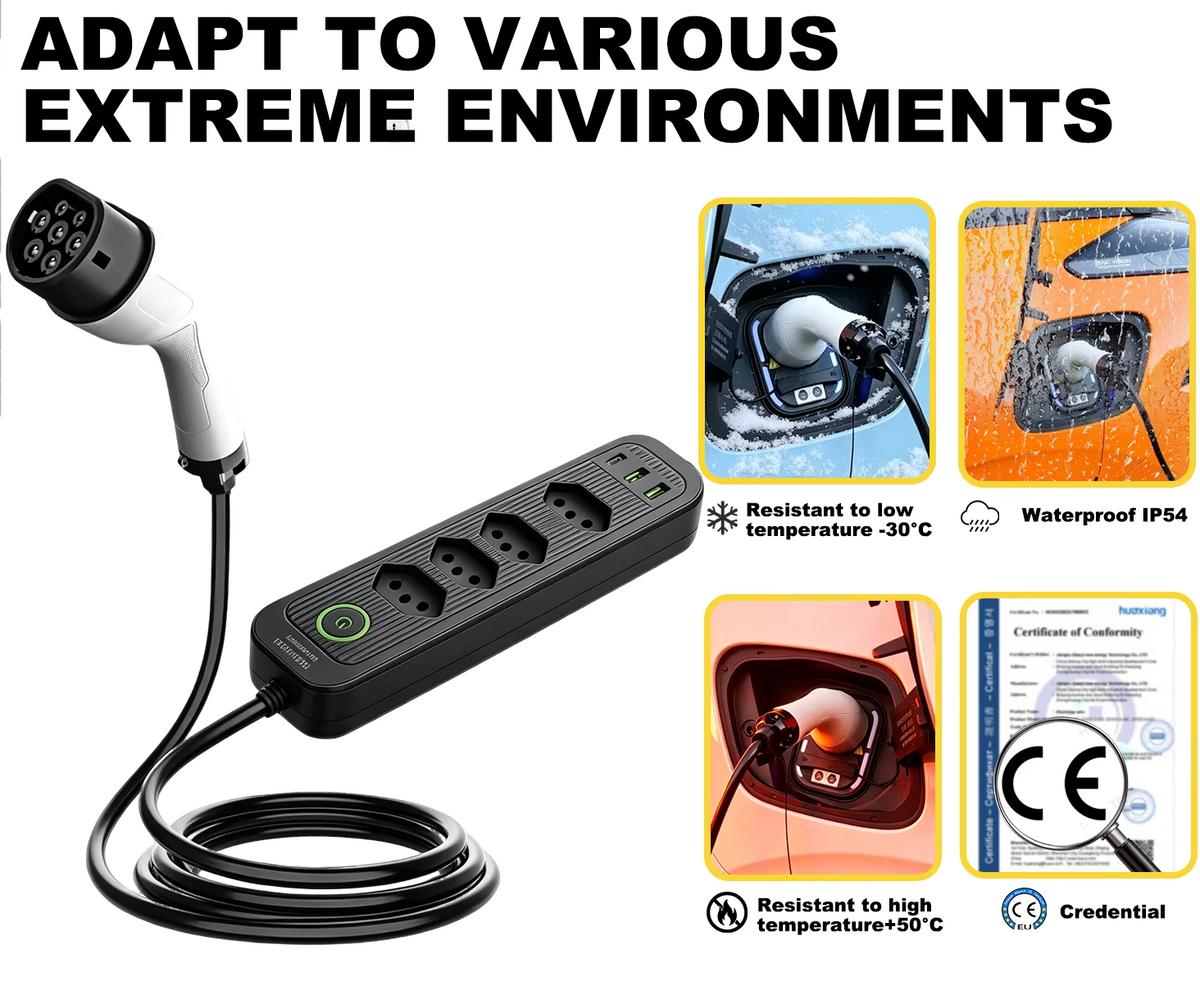

Safety & Protection

The adapter features a durable PC+ABS housing and copper electrical components, with protection against dust and water splashes.

• IP54 protection
• PC+ABS construction
• Copper electrical components
• Dust protection
• Water splash resistance
• Operating temperature: -30°C to +50°C
• Maximum current: 16A
• Maximum power: 3.5kW

Do not exceed the vehicle's V2L output rating or the adapter's maximum electrical rating.

Build Quality

• Housing: PC + ABS
• Conductive Components: Copper
• Connector: Type 2
• Protection Rating: IP54
• Weight: Approximately 0.7kg
• Dimensions: Approximately 25 × 15 × 10cm

The compact design makes the adapter suitable for keeping in a vehicle and using when portable AC power is required.

Suitable Applications

When connected to a compatible V2L-enabled EV, the adapter can provide power for suitable external electrical equipment, subject to the vehicle's V2L output capacity.

Potential applications include:

• Outdoor activities
• Camping
• Emergency power
• Portable electrical equipment
• Small appliances
• Electric mobility equipment
• Temporary power requirements

Always check the power requirements of connected equipment before use.

Specifications

Package Includes

• 1 × SUSUTOO Type 2 V2L Discharge Adapter

Important Notes

• This is a genuine V2L discharge adapter and is intended for vehicles that natively support V2L.
• The vehicle must specifically support V2L through its Type 2 port. A standard Type 2 charging port alone is not sufficient.
• Maximum stated output is 16A / 3.5kW at 220V, subject to the vehicle's own V2L limitations.
• Do not connect equipment that exceeds the vehicle or adapter's rated output.
• Check the compatibility of your specific vehicle before purchasing.
• V2L functionality may vary between vehicle models, model years and regional specifications.
• Keep connections protected from excessive moisture and do not use beyond the adapter's IP54 protection rating.
• Inspect the adapter before use and do not use it if the connector, housing or electrical components are damaged.
• This adapter is for AC power discharge from a compatible V2L-enabled EV and is not an EV charging cable.
