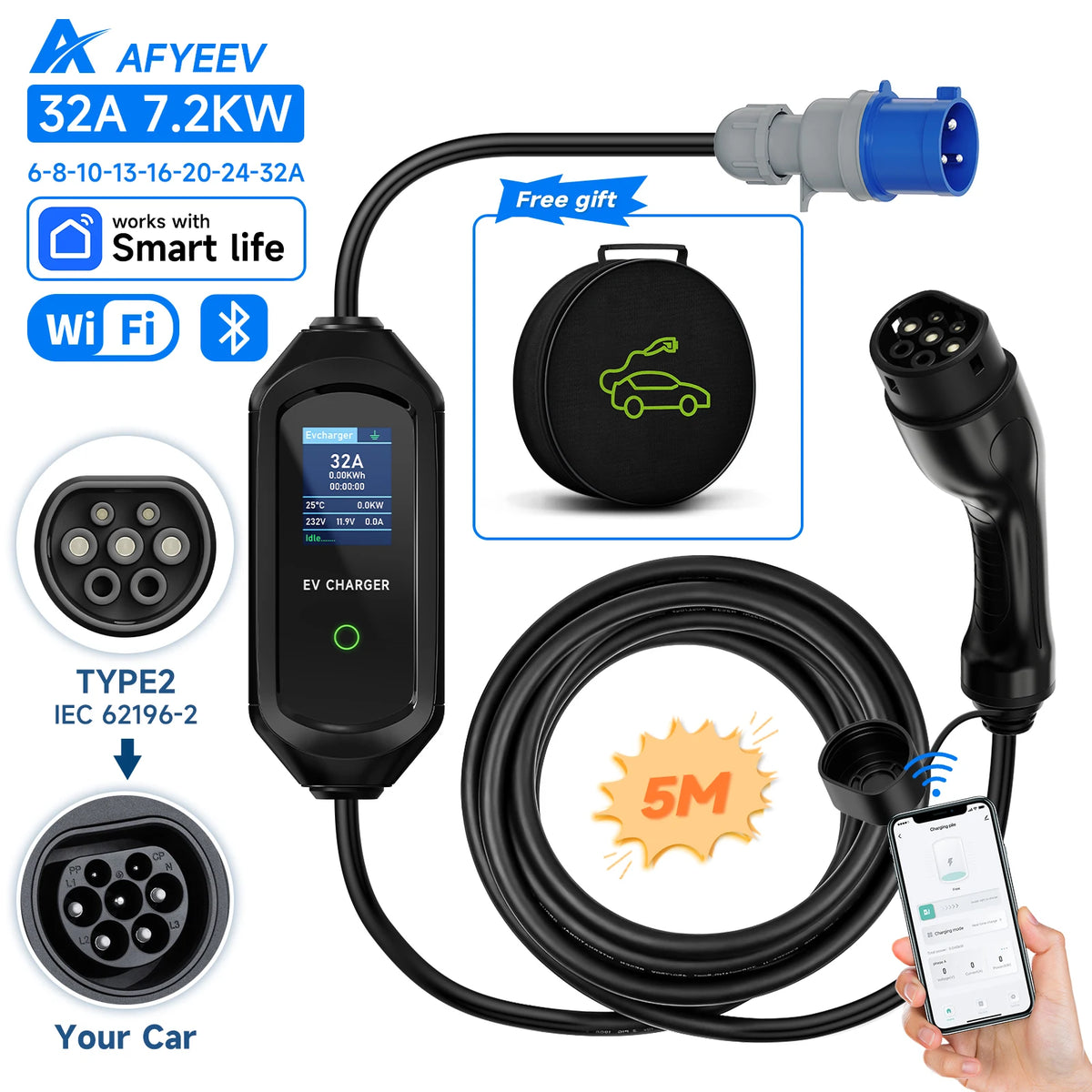

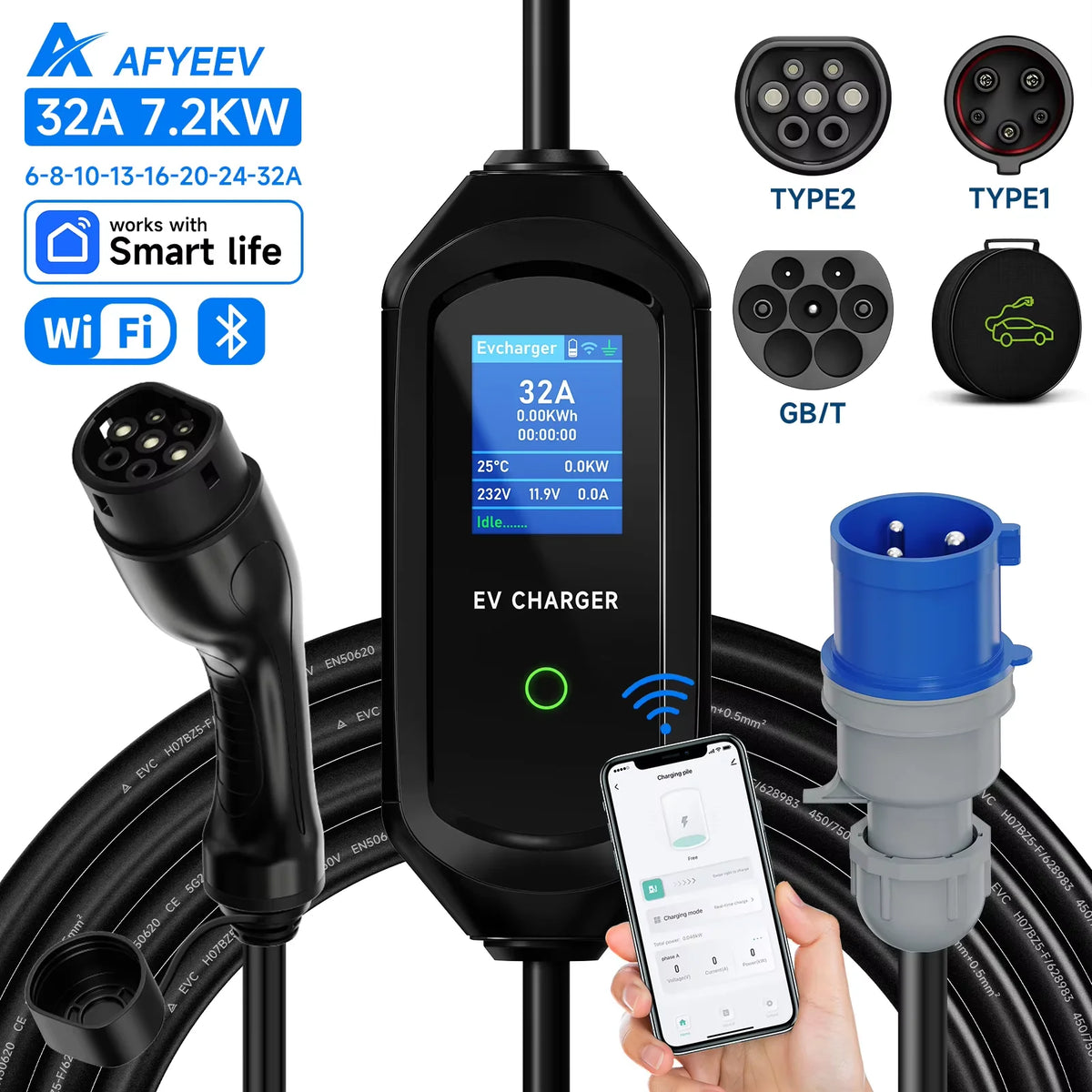

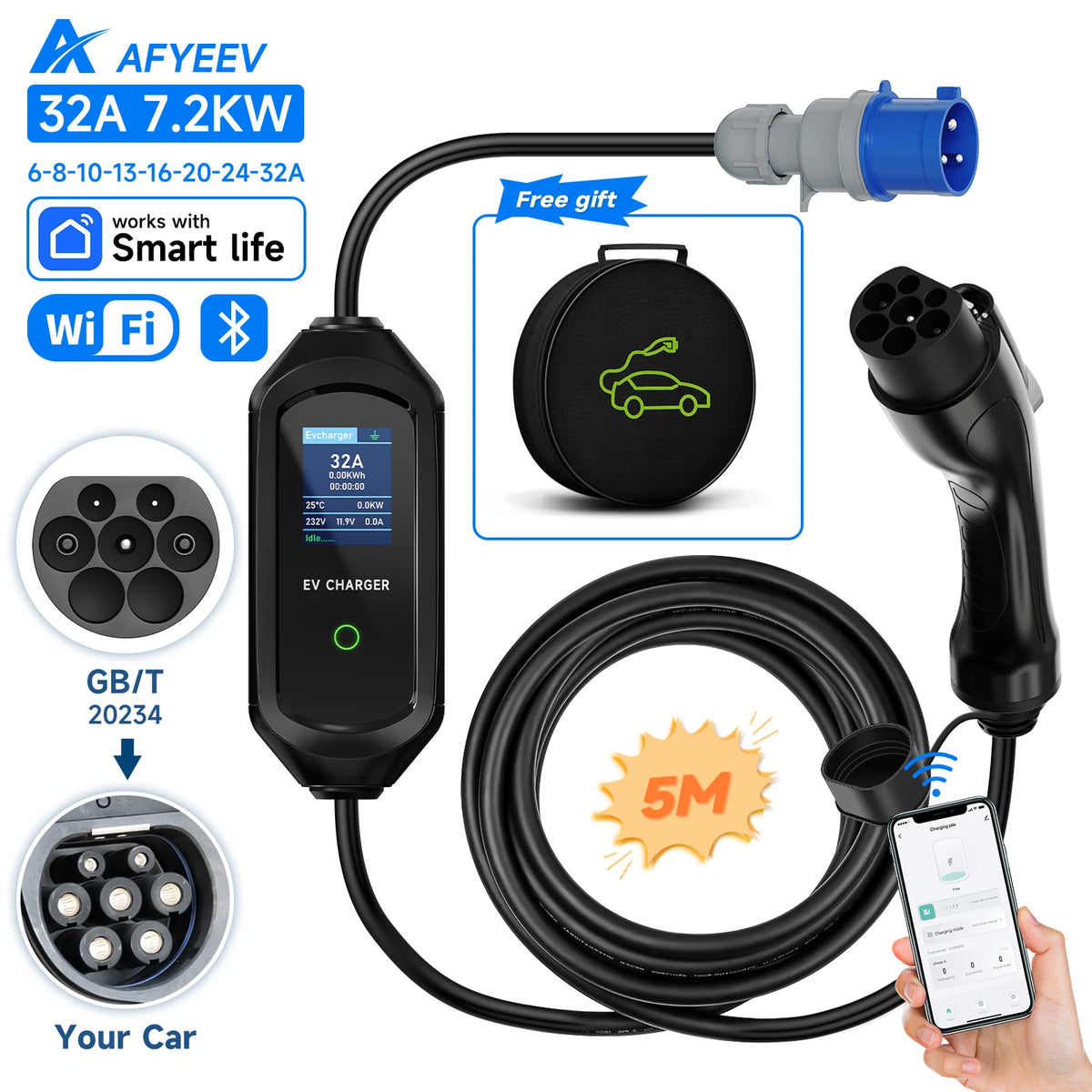

AFYEEV 32A 7.2kW Portable EV Charger

The AFYEEV 32A 7.2kW Portable EV Charger is a flexible single-phase EVSE charging solution designed for electric vehicles using compatible Type 2, Type 1 or GB/T charging connections, depending on the selected variant.

With adjustable charging current from 6A to 32A, the charger can deliver up to 7.2kW of charging power when connected to a suitable 230V supply. Charging settings can be adjusted directly from the control box, while supported Wi-Fi, Bluetooth and app functionality provides additional control and monitoring options.

A built-in display provides real-time charging information, while multiple protection systems help protect the vehicle, charger and electrical supply during operation. The 5m charging cable provides practical reach for home, driveway and other suitable charging environments.

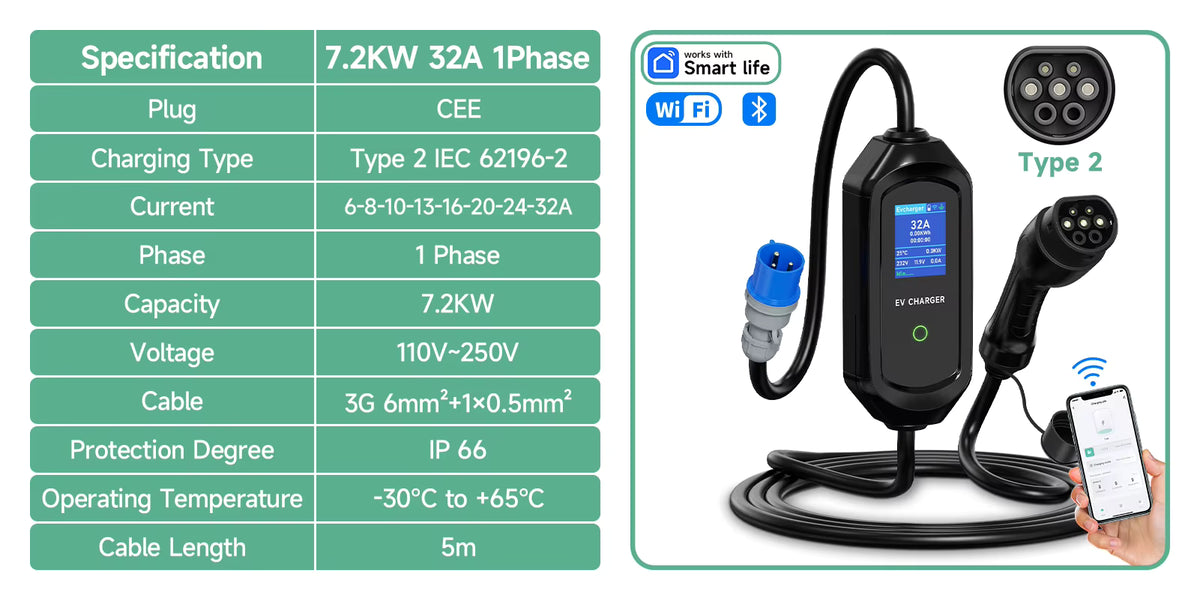

Performance

• Maximum Charging Power: Up to 7.2kW
• Maximum Charging Current: 32A

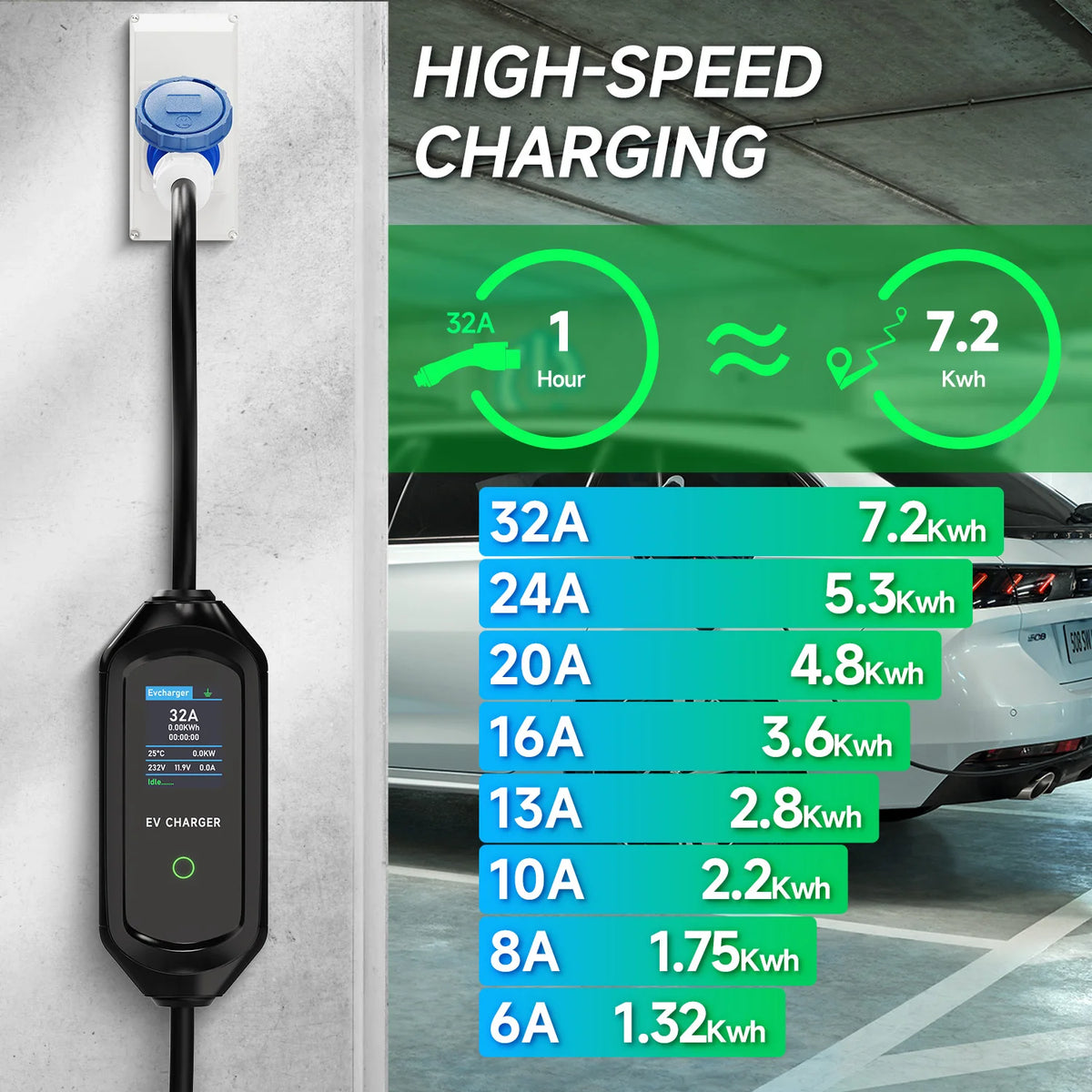

• Adjustable Current: 6A / 8A / 10A / 13A / 16A / 20A / 24A / 32A
• Input Voltage: 110V–250V
• Typical Maximum Output: 7.2kW at suitable 230V / 32A supply
• Phase: Single phase
• Cable Length: 5m
• Connector Options: Type 2, Type 1 or GB/T, depending on selected variant
• Operating Temperature: -30°C to +65°C
• Charging Control: Control box and supported mobile app
• Scheduling: Yes
• Full-Charge Notification: Supported
• Automatic Power-Off: Supported according to supplied specifications

Smart Charging & App Control

The AFYEEV charger provides multiple ways to monitor and control charging.

Wi-Fi & Bluetooth

Supported smart functions allow users to connect the charger through Wi-Fi and Bluetooth and access charging controls through the compatible mobile application.

Depending on the selected configuration, users can:

• Start or stop charging
• Adjust charging current
• Schedule charging
• Monitor charging status
• Monitor charging time
• View charging power
• View charging voltage
• View charging current
• Monitor charger temperature
• Receive charging status information
• Set charging periods for off-peak electricity use

The charger can also be controlled using the physical buttons on the control box.

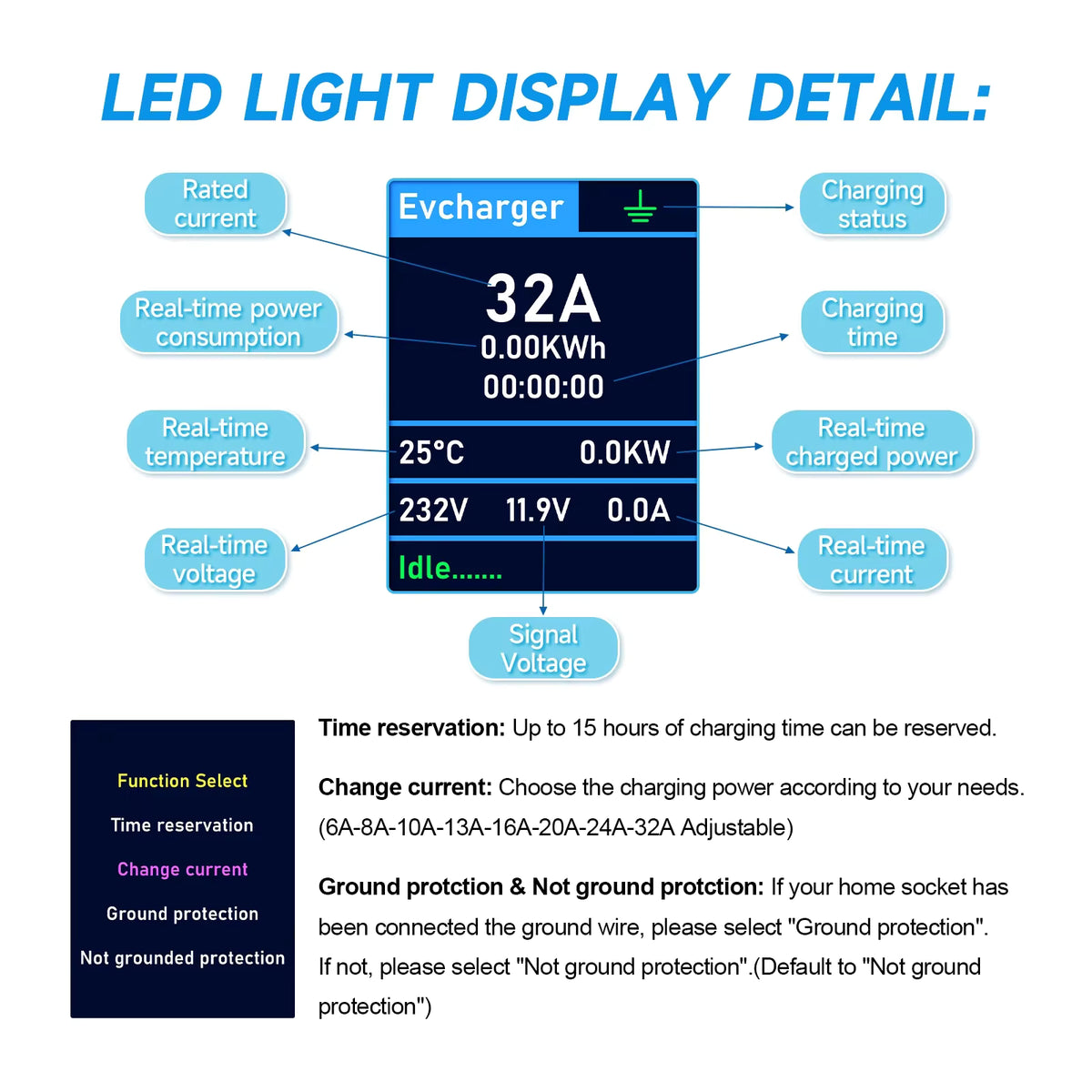

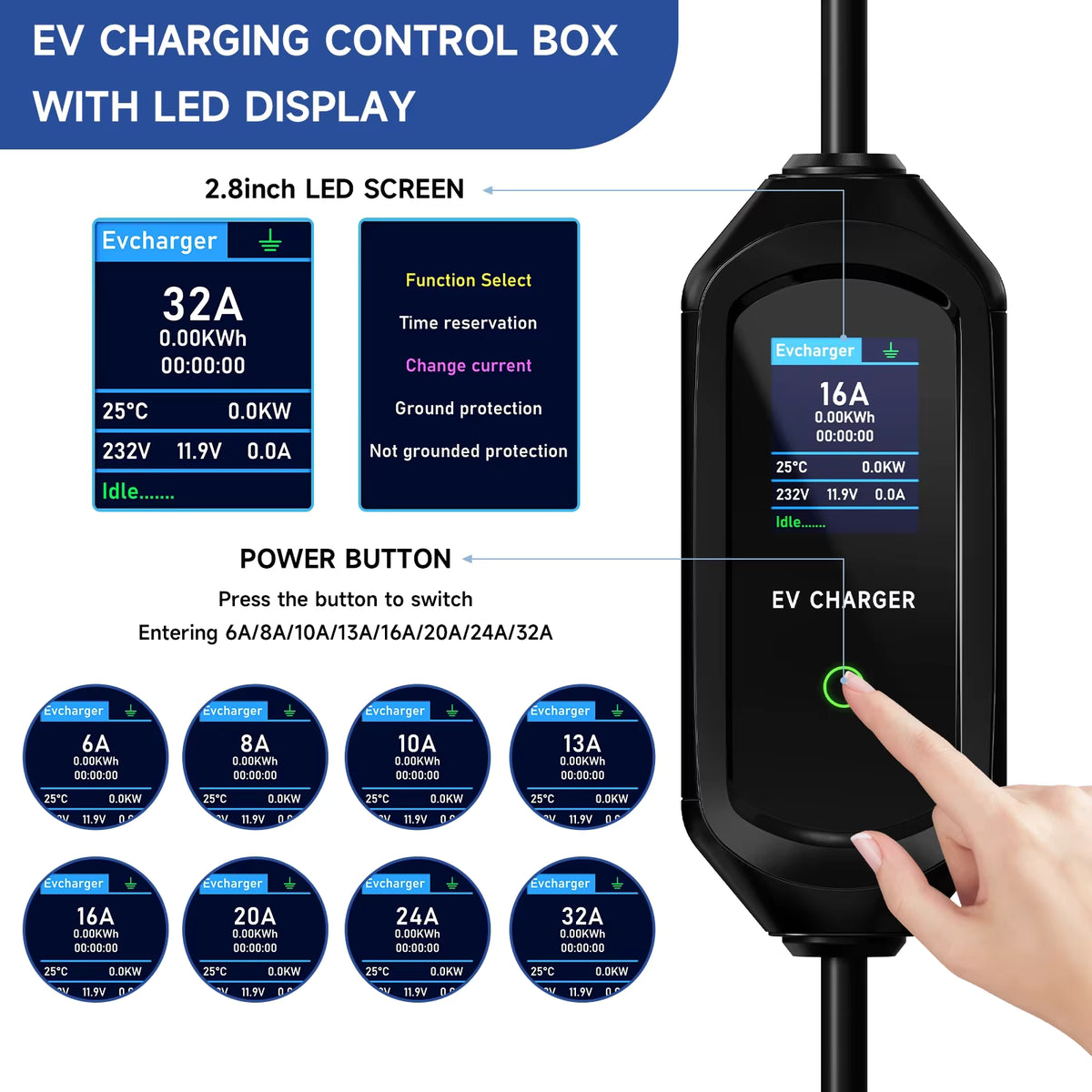

LCD Display

The integrated 2.8-inch display provides real-time charging information, including:

• Charging current
• Voltage
• Power consumption
• Charging time
• Charged energy
• Temperature
• Charging status
• Rated current

LED indicators on the control box provide additional charging-status information.

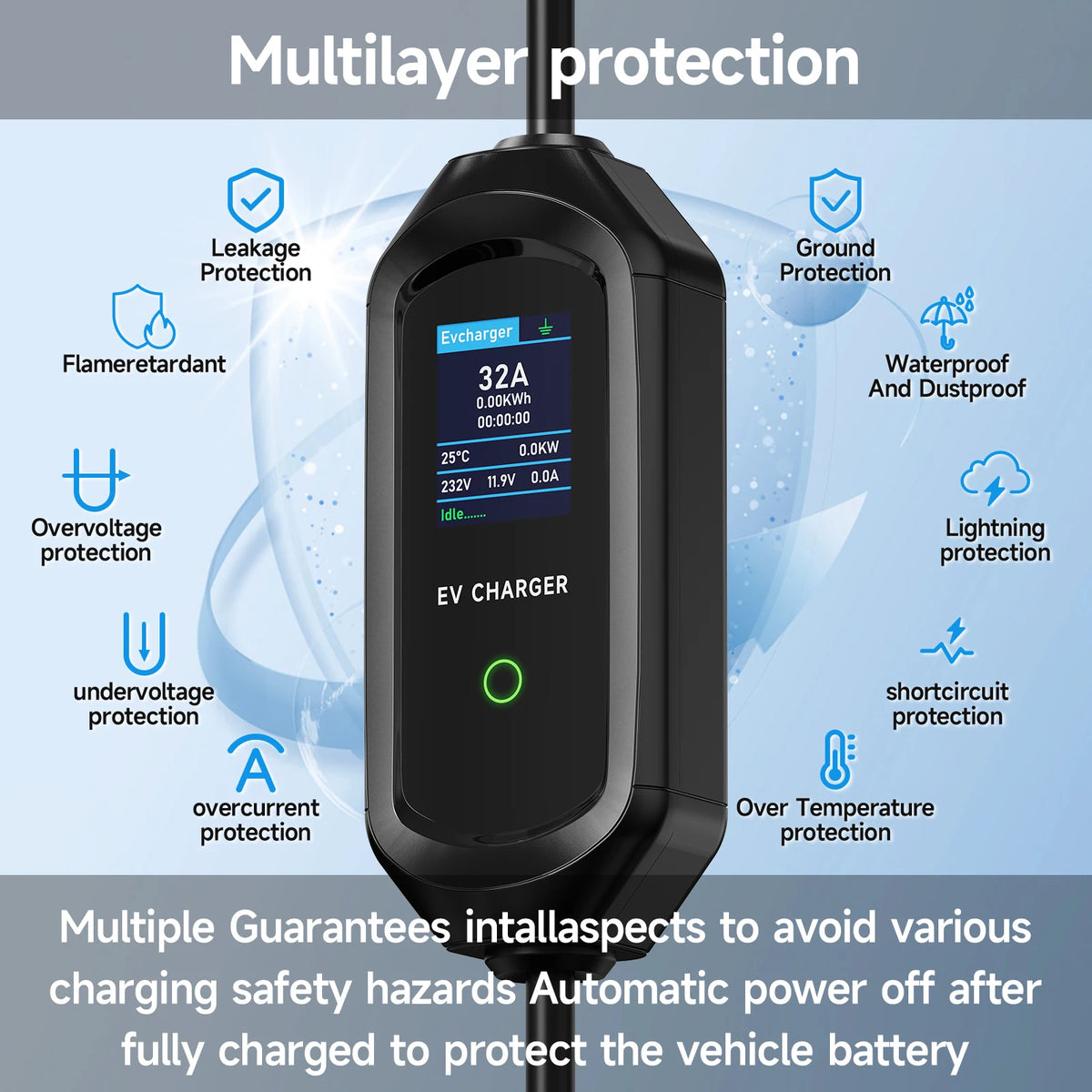

Safety & Features

The charger incorporates multiple protection systems designed to provide safer EV charging, including:

• Over-current protection
• Over-voltage protection
• Under-voltage protection
• Over-temperature protection
• Leakage protection
• Short-circuit protection
• Ground protection
• Ungrounded-wire protection
• Lightning protection
• Flame-retardant construction
• Waterproof and dust-resistant construction
• Type B leakage protection with AC 30mA + DC 6mA detection
• Thermal management
• Rugged TPE charging cable
• Aluminium alloy control box housing
• Silver-plated copper alloy contact components
• IP66 protection rating during operation

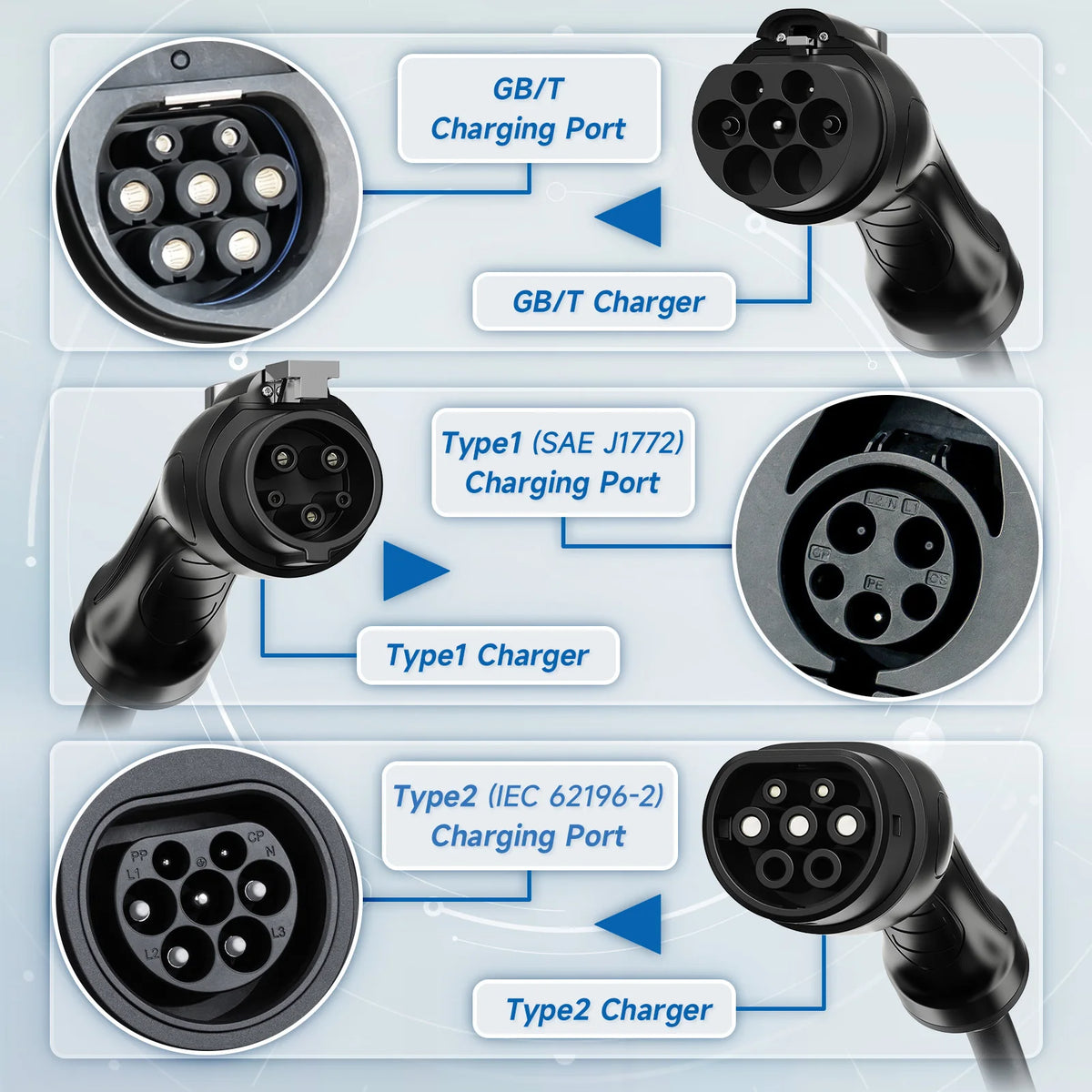

Connector Options

The charger is available with different vehicle-side connector configurations:

Type 2

Designed for electric vehicles equipped with the European-style Type 2 AC charging inlet.

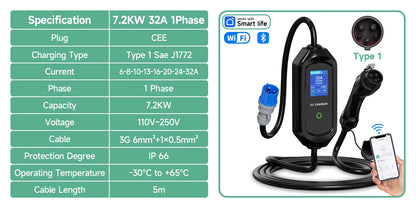

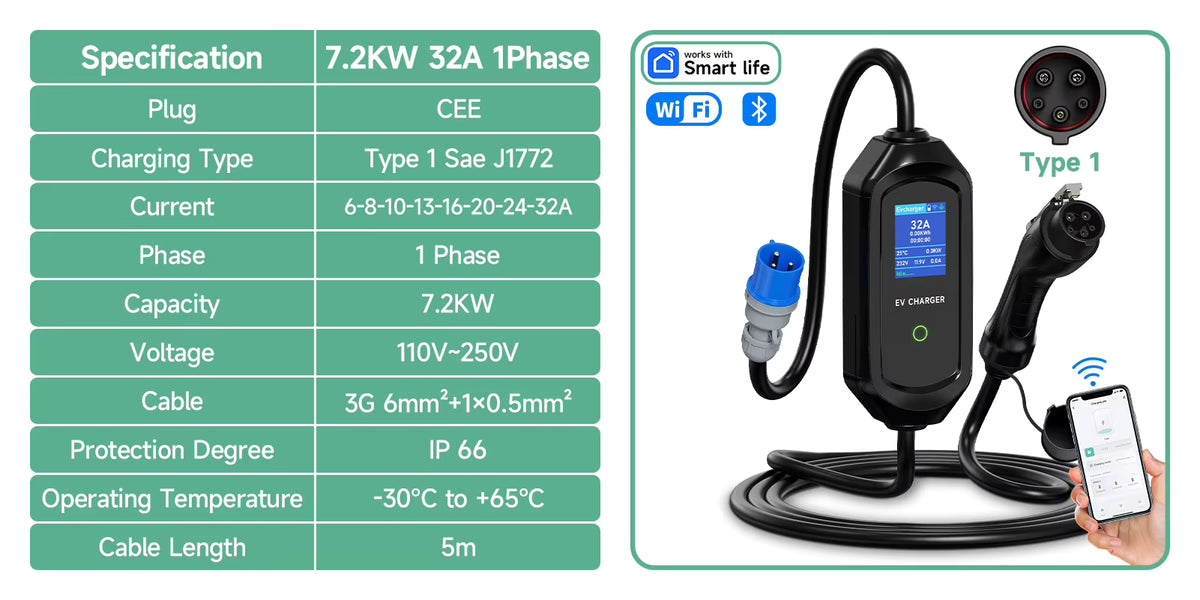

Type 1

Designed for compatible electric vehicles using the Type 1 AC charging connection.

GB/T

Designed for compatible vehicles using the GB/T charging standard.

Please select the correct connector variant for your vehicle before ordering.

Construction

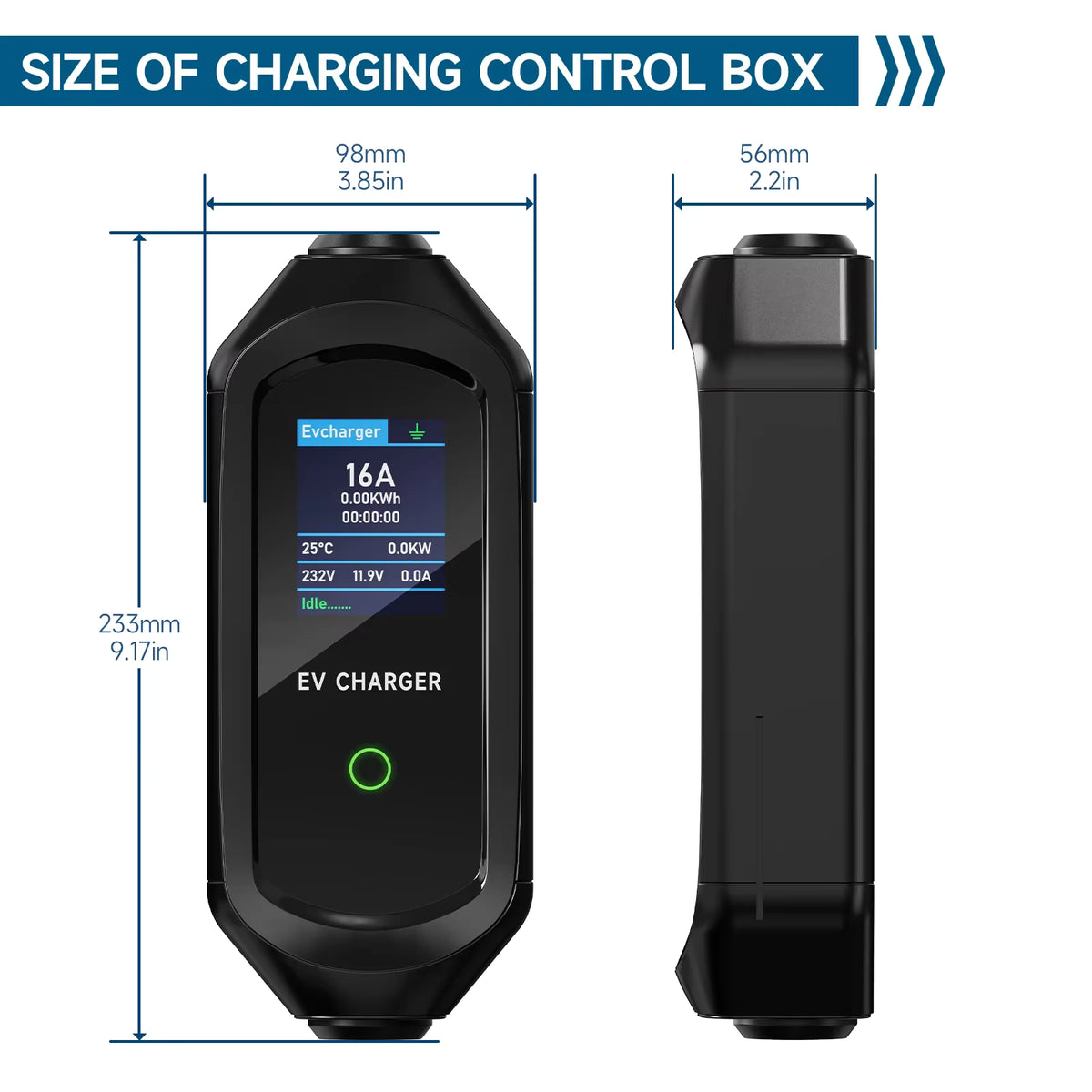

The charger features an aluminium alloy control box designed to assist with heat dissipation and a rugged TPU/TPE charging cable designed for regular handling.

The vehicle connector uses silver-plated copper alloy contacts for reliable electrical connection and durability. The supplied specifications state a mechanical life of more than 10,000 plug and unplug cycles.

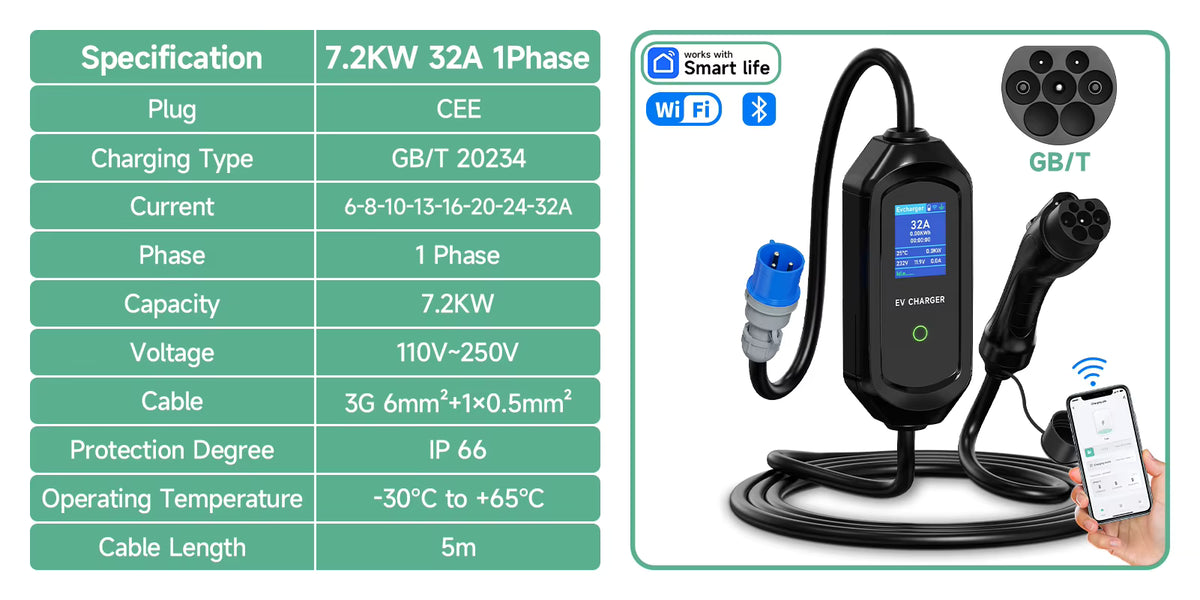

Specifications

Package Includes

• 1 × AFYEEV Portable EV Charger
• 1 × 5m Charging Cable
• 1 × Selected Vehicle Charging Connector
• 1 × Control Box
• User documentation

Important Notes

• Type 2, Type 1 and GB/T are separate connector variants. Select the correct version for your vehicle before ordering.
• Maximum 7.2kW output requires a suitable electrical supply and compatible vehicle.
• Actual charging speed depends on the available power supply, selected current setting and vehicle's onboard charger.
• The charger supports adjustable current from 6A to 32A. Always select a current appropriate for the electrical circuit being used.
• Wi-Fi, Bluetooth and app functionality require a compatible connection and application.
• The supplied product information contains a contradiction regarding wireless support: the specification states "Wireless Support: No", while the product description explicitly states Wi-Fi, Bluetooth and app control. The listing therefore describes the smart-control functions as supplier-stated features rather than guaranteeing wireless functionality on every variant.
• Do not use the charger if the cable, connector or control box is damaged.
• Ensure the electrical supply is properly grounded before charging.
• High-power EV charging should be carried out using an appropriately rated electrical circuit and outlet.
• IP66 protection applies to the charger in its specified operating configuration. Keep electrical connections away from standing water.
• High-voltage electrical equipment should be handled and installed in accordance with applicable local electrical requirements.
