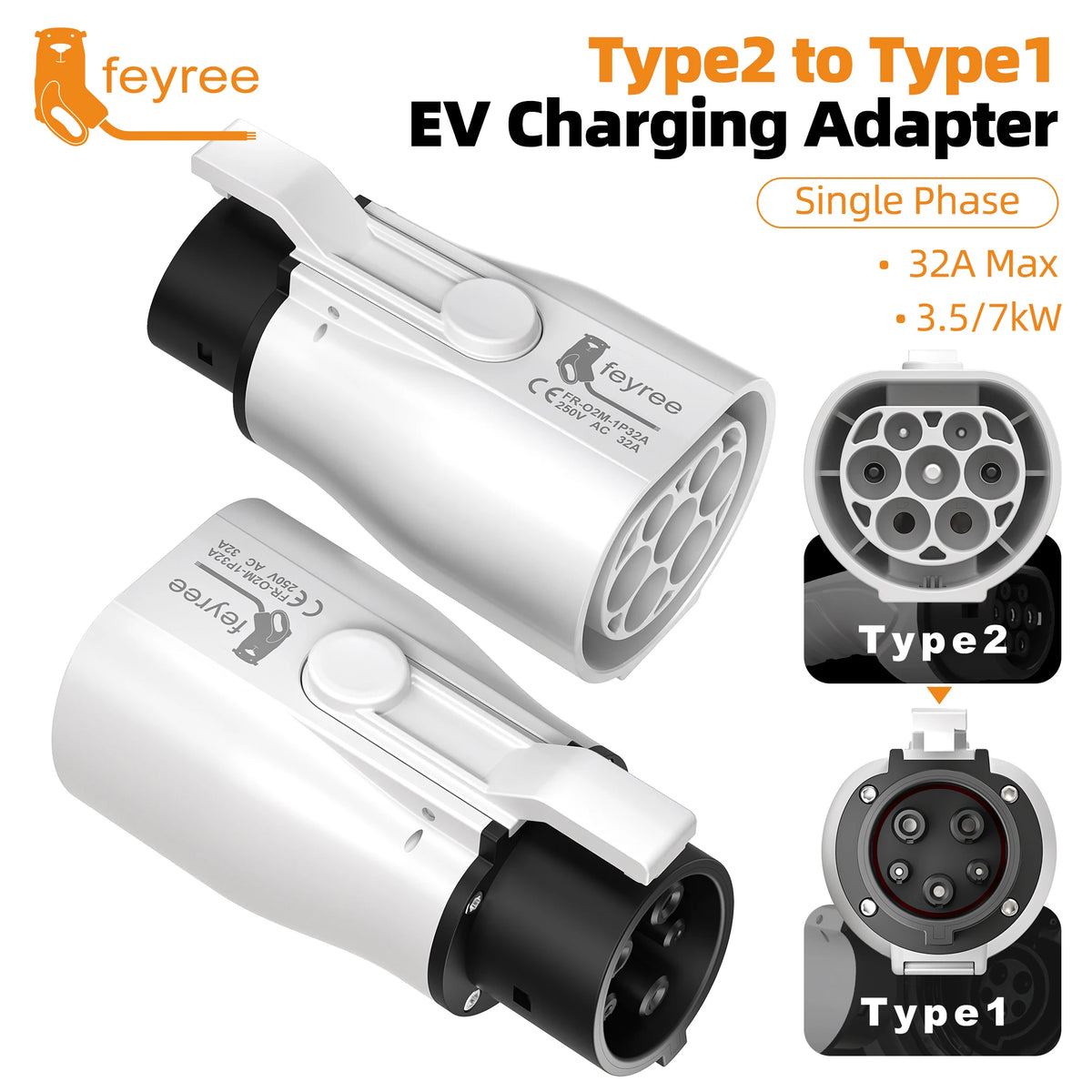

Feyree Type 2 to Type 1 EV Charging Adapter 16A / 32A

The Feyree Type 2 to Type 1 EV Charging Adapter allows electric vehicles with a Type 1 / SAE J1772 charging inlet to connect to compatible Type 2 / IEC 62196-2 AC charging cables and charging equipment.

Designed for single-phase AC charging, the adapter supports 16A and 32A configurations, with charging power of up to approximately 3.5kW or 7kW, depending on the selected current and charging system.

Its compact, cable-free design makes it easy to carry and store, while the integrated dual-lock mechanism helps provide a secure connection during charging.

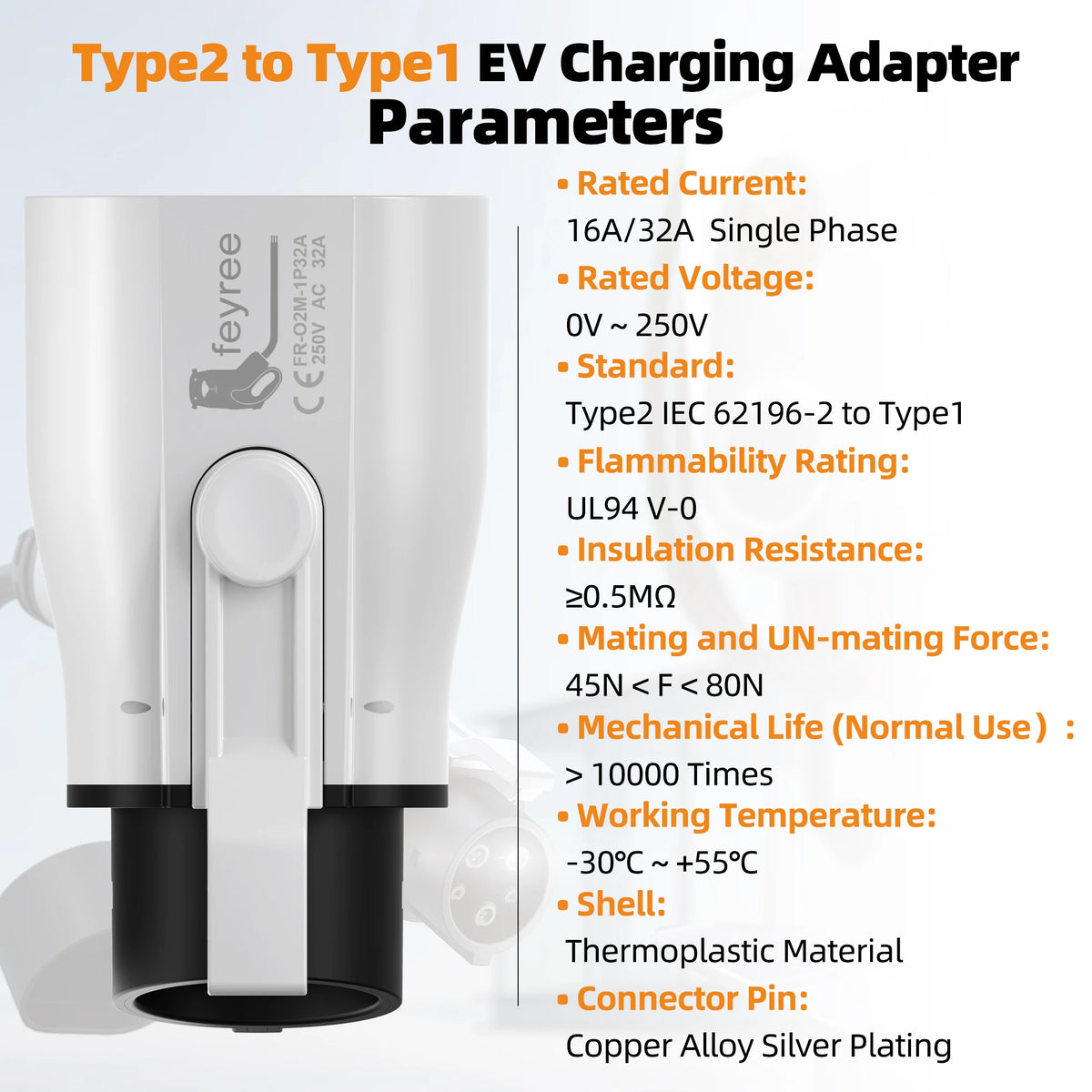

Performance

• Adapter Type: Type 2 to Type 1
• Input Connector: Type 2 / IEC 62196-2
• Vehicle Connector: Type 1 / SAE J1772
• Rated Current: 16A / 32A
• Maximum Power: Up to 7kW
• Single-Phase Charging: Yes
• Rated Voltage: Up to 250V AC according to the primary specification
• Frequency: 50–60Hz
• Mechanical Life: More than 10,000 connection cycles
• Actual charging power depends on the selected adapter configuration, charging equipment, vehicle onboard charger and available electrical supply.

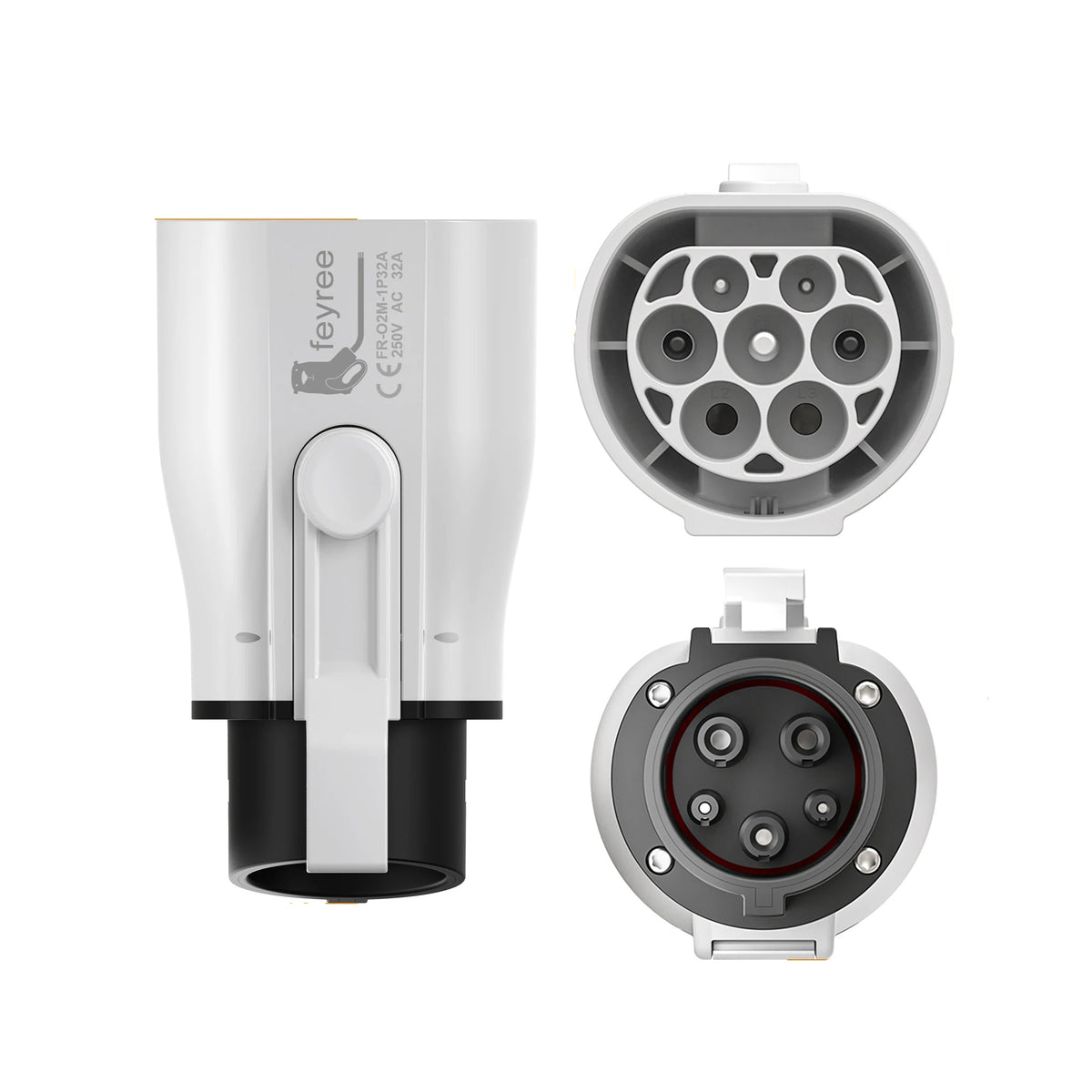

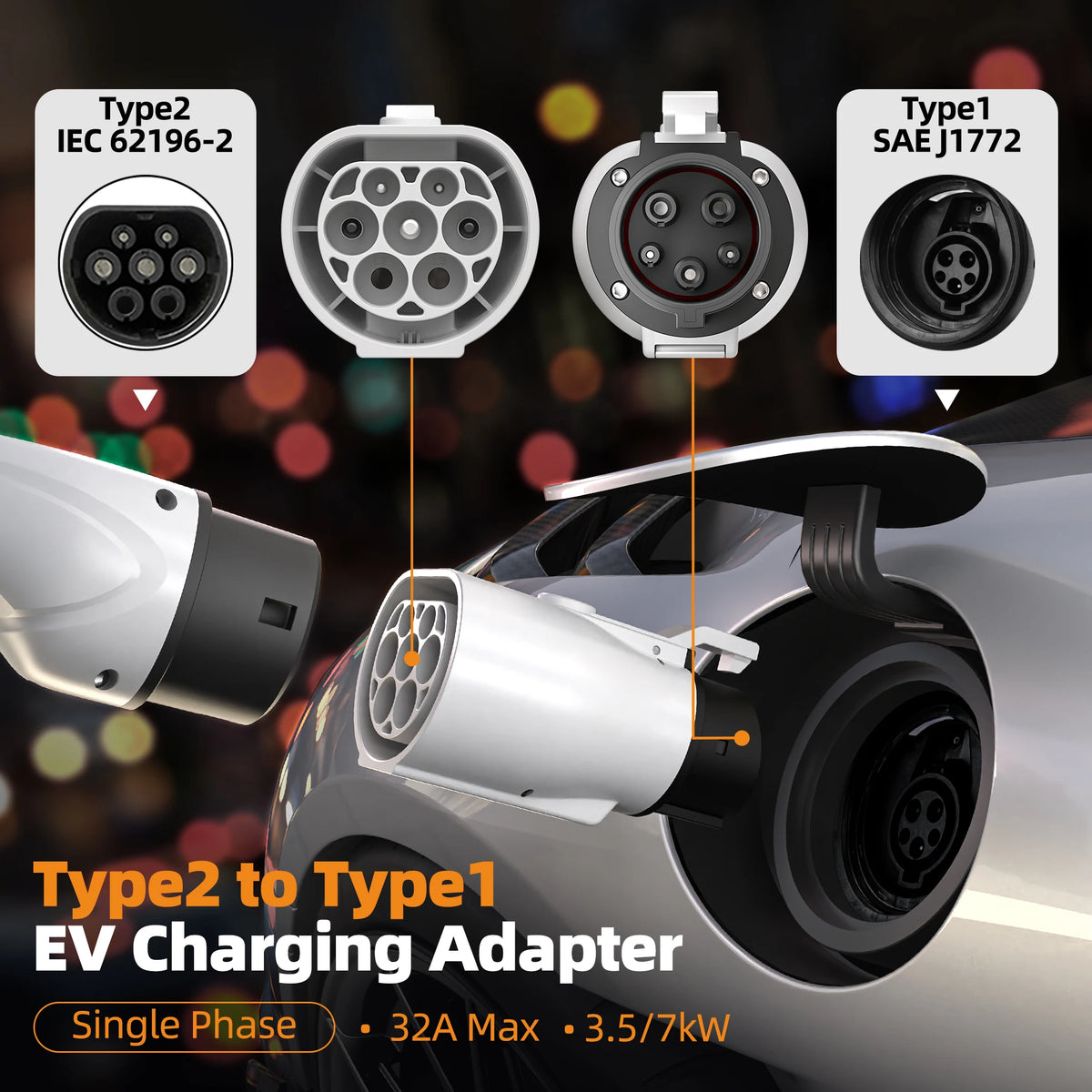

Type 2 to Type 1 Compatibility

This adapter is designed to connect:

Type 2 charging cable or charging equipment → Feyree adapter → Type 1 vehicle inlet

It is suitable for compatible electric vehicles equipped with a Type 1 / SAE J1772 AC charging inlet.

Important: This is a Type 2 to Type 1 adapter. It is not a Type 1 to Type 2 adapter and cannot be used as a substitute for the reverse configuration.

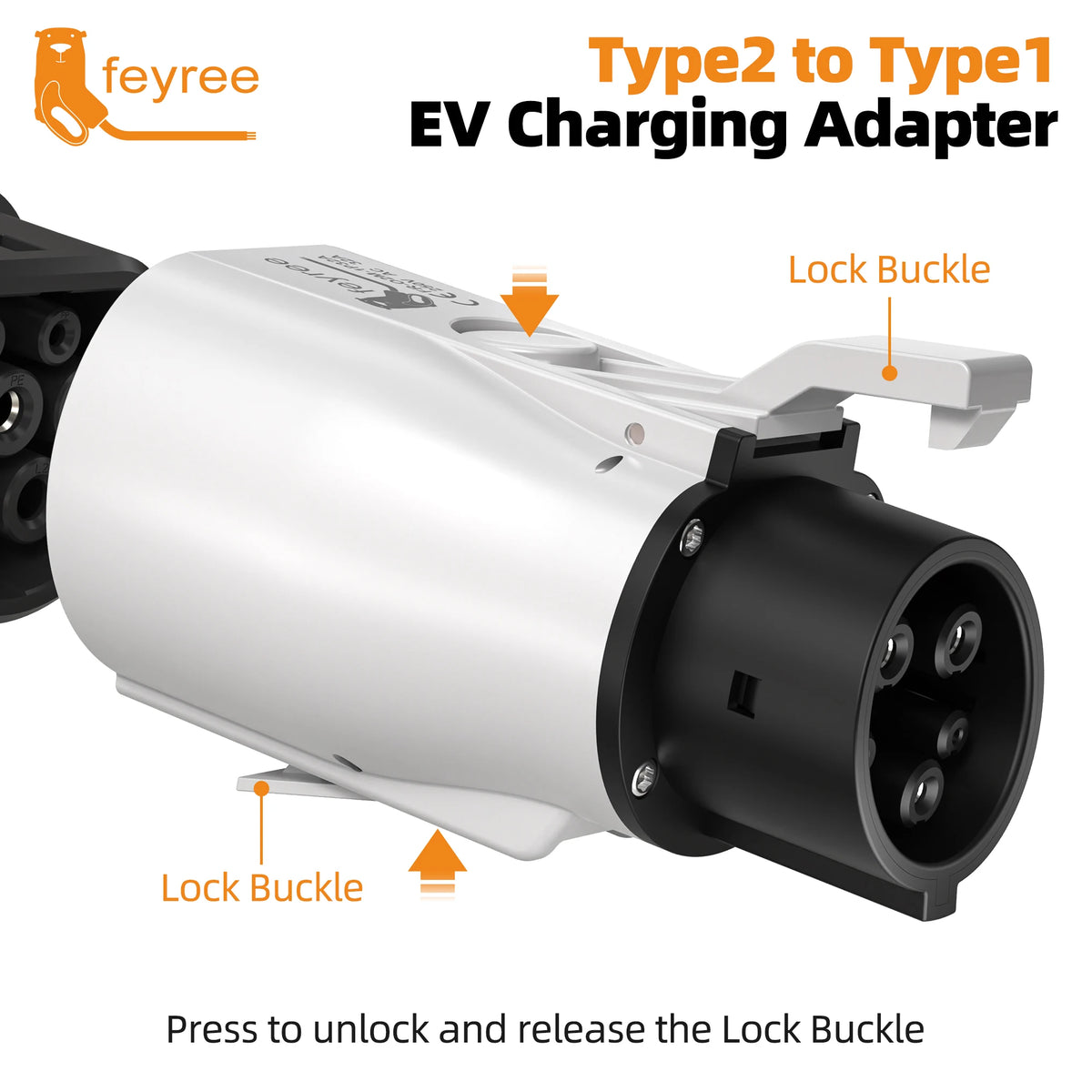

Dual-Lock Design

The integrated dual-lock design helps secure the adapter between the charging connector and vehicle inlet during charging.

The adapter has no charging cable, keeping the overall design compact and convenient for storage in a vehicle.

Safety & Protection

The adapter features a range of protective design characteristics:

• IP54 protection
• Flame-retardant thermoplastic housing
• UL94 V-0 flame-retardant rating
• Copper alloy pins with silver plating
• Dual-lock connection
• Protection against water sprays
• Operating temperature of approximately -30°C to +50°C
• More than 10,000 mechanical connection cycles

The supplier states that the adapter is protected against water sprays but is not suitable for outdoor charging in rainy conditions.

Build Quality

• Housing: Flame-retardant thermoplastic
• Pin Material: Copper alloy
• Pin Finish: Silver plated
• Flame Retardant: UL94 V-0
• Cable: None
• Weight: Approximately 0.5kg
• Dimensions: Approximately 19 × 8 × 8cm

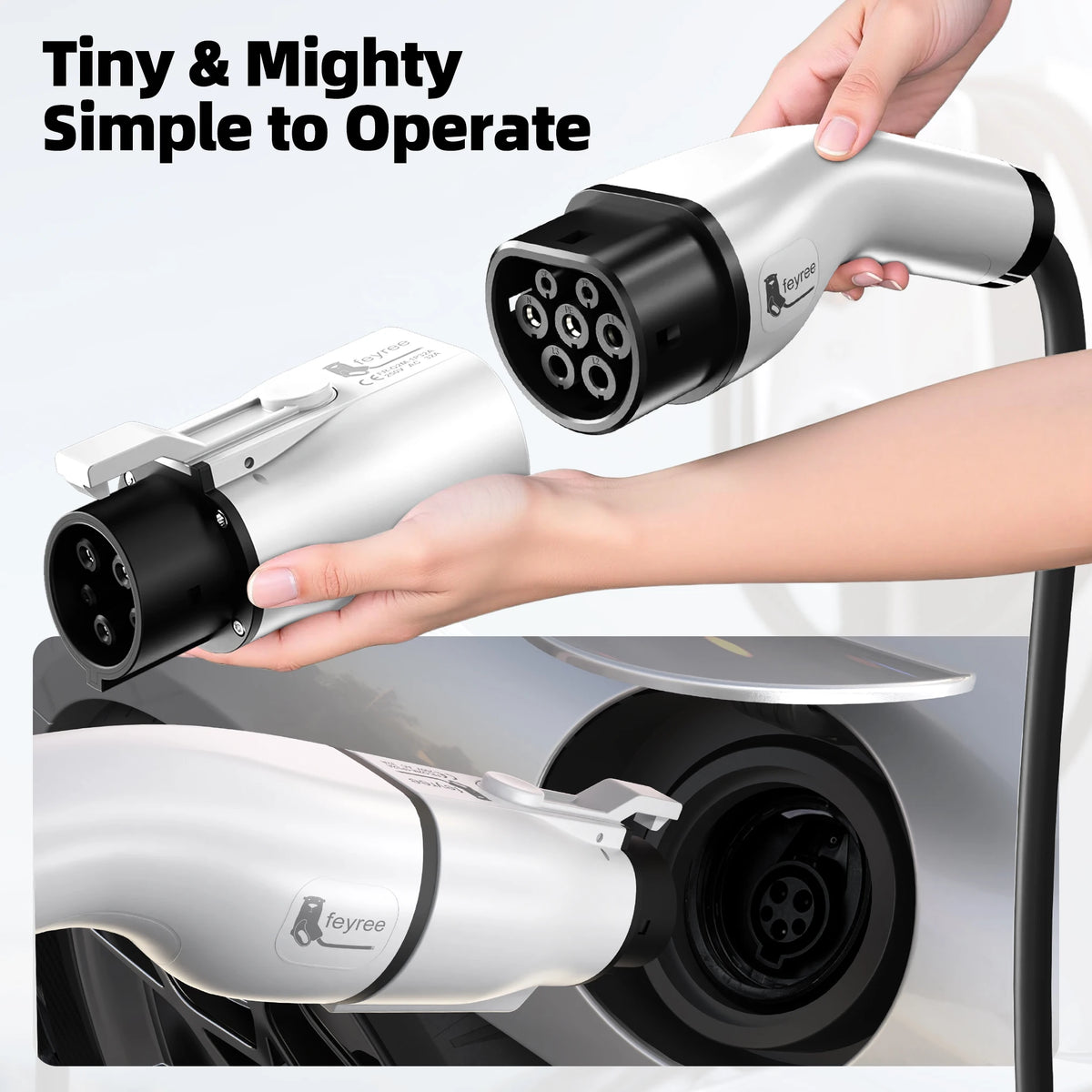

The compact cable-free design makes the adapter convenient to carry between charging locations.

Specifications

Package Includes

• 1 × Feyree Type 2 to Type 1 EV Charging Adapter
• 1 × User Manual

Important Notes

• This adapter is specifically designed for Type 2 charging equipment to Type 1 vehicle connections.
• Confirm that your vehicle uses a Type 1 / SAE J1772 charging inlet before purchasing.
• The adapter supports single-phase AC charging only.
• Maximum charging power depends on the vehicle, charging equipment, electrical supply and selected current configuration.
• The supplier provides both 16A and 32A variants. Select the appropriate version for your charging requirements.
• IP54 protection does not mean the adapter is suitable for charging in heavy rain or wet outdoor conditions.
• Do not use the adapter if the housing, pins or locking mechanism is damaged.
• Do not exceed the adapter's rated electrical specifications.
• Always follow the vehicle and charging equipment manufacturer's instructions.
