LAUNCH X431 PRO3S+ EV Diagnostic Tool

The LAUNCH X431 PRO3S+ EV is a professional automotive diagnostic platform designed specifically to support electric vehicles and new energy vehicles, while also providing extensive diagnostic and service capabilities for conventional vehicles.

The system combines vehicle diagnostics and EV battery-pack diagnostics in a single platform. It can access supported high-voltage vehicle systems and, depending on vehicle compatibility, provide detailed battery information including SOC, SOH, battery temperature, module data, individual cell voltage and individual cell temperature.

The included SmartLink C V2 connector supports both local and remote diagnostic modes, together with modern communication standards including CAN 2.0, CAN FD and DoIP. J2534 and D-PDU support further expands its compatibility with professional diagnostic applications.

With intelligent diagnostics, automatic VIN recognition, topology mapping, guided functions and support for numerous optional expansion modules, the X431 PRO3S+ EV is designed for professional workshops and EV specialists.

Dimensions

Main Unit

• Dimensions: 274 × 190.5 × 40.5mm
• Display: 10.1-inch fully laminated touchscreen
• Resolution: 1280 × 800
• Ports: USB Type-A and Type-C

SmartLink C V2

• Dimensions: 200 × 110 × 47mm
• Display: 3.97-inch TFT
• Display resolution: 320 × 480

Performance

• Operating system: Android 10.0
• Processor: 2.0GHz quad-core
• RAM: 4GB
• Storage: 64GB
• Main display: 10.1-inch sunlight-readable touchscreen
• Wi-Fi: 2.4GHz / 5GHz dual-band
• Communication: Bluetooth and wired connection
• Remote diagnostics: Ethernet
• Vehicle communication: CAN 2.0 / CAN FD / DoIP
• J2534 support
• D-PDU support
• Operating temperature: 0°C to 50°C
• Free software updates: 2 years

EV Battery Pack Diagnostics

The X431 PRO3S+ EV provides dedicated diagnostic capabilities for supported electric vehicle battery systems.

Depending on the vehicle and battery system, it can access information such as:

• Battery pack module count
• State of Charge (SOC)
• State of Health (SOH)
• Battery current temperature
• Individual module voltage
• Individual module temperature
• Individual cell voltage
• Individual cell temperature
• Voltage differences between cells or modules
• Battery pack diagnostic information

The system supports multiple battery-pack diagnostic methods:

Dedicated Harness Diagnosis: Uses dedicated battery-pack connectors for supported applications.

Jumper Diagnosis: Allows connection to supported battery-pack interfaces where a standard connector is not available, following the diagnostic software instructions.

OBD Diagnosis: Performs supported battery-pack diagnostics through the vehicle's 16-pin OBD interface.

Diagnostic reports can also be generated, shared and printed where supported.

Important: Battery-pack diagnostic functions and coverage vary by vehicle model and battery system.

High-Voltage EV Diagnostics

The X431 PRO3S+ EV is designed to provide diagnostic access to supported high-voltage systems found in new energy vehicles.

Functions can include:

• High-voltage system diagnostics
• High-voltage battery health testing
• Battery data-stream analysis
• Motor system diagnostics
• On-board charger diagnostics
• DC-DC converter diagnostics
• EV air-conditioning compressor testing
• 48V mild-hybrid component testing
• Electronic water pump activation
• Motor angle position sensor calibration

Some functions may require specific vehicle conditions, procedures or additional equipment.

Intelligent Diagnostics & Topology Mapping

The system provides an intelligent diagnostic workflow designed to simplify fault identification.

Features include:

• Automatic VIN recognition
• Intelligent vehicle identification
• Quick system scan
• Full-system diagnostics
• Graphical topology mapping
• Guided functions
• Fault guidance
• Test plans
• SGW gateway support where applicable

The topology display provides a graphical overview of the vehicle's available electronic control systems, helping technicians quickly identify modules and potential fault areas.

Full-System Diagnostics

The X431 PRO3S+ EV can perform diagnostics across supported vehicle control systems.

Functions can include:

• Reading diagnostic trouble codes
• Clearing diagnostic trouble codes
• Viewing live data
• System scanning
• ECU communication
• Component and module diagnostics
• Fault identification
• Guided diagnostic procedures
• Diagnostic report generation

Available systems and functions depend on the individual vehicle.

Pin Detection

The built-in pin detection function can check the OBD-II diagnostic connector to help technicians identify:

• Pin voltage
• Supported communication protocols
• Potential OBD connector faults

This can help determine whether communication problems originate from the vehicle's diagnostic interface.

Special Functions

The X431 PRO3S+ EV supports a broad range of service, reset, calibration and programming functions on supported vehicles.

Examples include:

• High-voltage battery health test
• High-voltage power-off
• EV A/C compressor test
• On-board charger offline test
• DC-DC converter offline test
• 48V mild-hybrid component test
• Coolant replacement
• Battery matching
• Maintenance light reset
• Throttle matching
• Steering angle reset
• Brake pad reset
• TPMS reset
• Immobilizer matching
• ABS bleeding
• Gear learning
• Injector coding
• Sunroof initialisation
• Headlight matching
• Suspension matching
• Transmission matching
• EGR functions
• Window and door calibration
• Seat calibration
• Tire modification
• Language setting
• A/F adjustment
• Electronic water pump activation
• Transport mode deactivation
• Start-stop settings
• Automatic air-conditioning initialisation
• Engine power balance
• Intelligent cruise control calibration
• Motor angle position sensor calibration

Special functions vary according to vehicle make, model, year and software coverage.

SmartLink C V2

The included SmartLink C V2 provides flexible communication between the diagnostic tablet and vehicle.

Local Diagnostic Mode

• Bluetooth communication
• Wired communication
• Direct vehicle diagnostics

Remote Diagnostic Mode

• Ethernet communication
• Remote diagnostic capability where supported

The SmartLink C V2 operates from 9–36V DC and has a maximum power consumption of less than 6W.

Vehicle Coverage

LAUNCH states that the X431 PRO3S+ EV supports over 95% of new energy vehicle models, with dedicated EV software covering manufacturers such as:

• BYD
• XPeng
• Leapmotor
• NETA
• Roewe
• GAC
• BAIC New Energy
• Zeekr
• And other supported new energy vehicle manufacturers

Coverage is continually expanded through software updates.

The 95% coverage figure is a manufacturer claim. Individual diagnostic functions, battery-pack access and special functions remain vehicle-specific.

Expansion Capability

The X431 PRO3S+ EV supports a range of optional hardware expansion modules, allowing the platform to be expanded as workshop requirements develop.

Optional modules include equipment for:

• TPMS
• ADAS
• New energy current measurement
• New energy oscilloscopes
• New energy multimeters
• Battery testing
• Immobilizer programming
• Additional diagnostic applications

Up to 13 expansion modules are supported according to the supplied specifications.

Additional software packages can also extend the system into areas including:

• Passenger vehicles
• Commercial vehicles
• Motorcycles
• Immobilizer systems
• New energy vehicles

Some expansion hardware and software packages are purchased separately.

X431 FIX

The optional X431 FIX database provides access to additional technical and repair resources, including:

• Repair cases
• Fault-code assistance
• Technical information
• Technical manuals
• Maintenance resources
• Operating guidance
• Training materials

X431 FIX is a paid optional service.

Specifications

Main Unit

SmartLink C V2

Package Includes

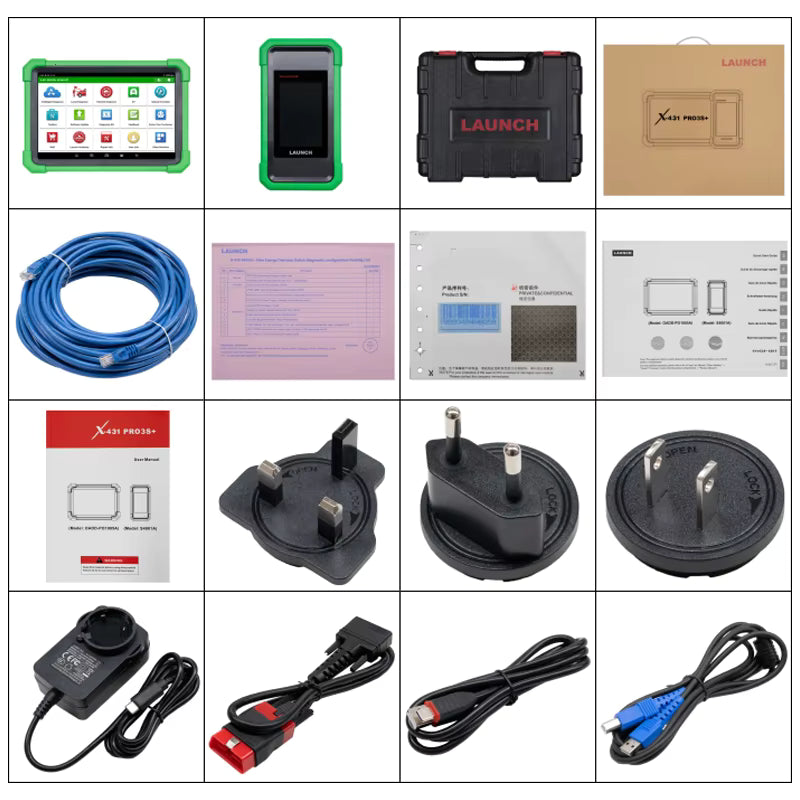

• 1 × LAUNCH X431 PRO3S+ EV Main Unit
• 1 × SmartLink C V2 Connector
• Diagnostic cables and required standard accessories as supplied
• Charging accessories
• Carrying/storage accessories as supplied

Package contents may vary depending on the selected configuration.

Important Notes

• This is a professional automotive diagnostic system. It is not a universal guarantee of access to every function on every vehicle.
• EV battery diagnostics, high-voltage functions, ECU coding, programming and special functions depend on vehicle make, model, year and software coverage.
• Always confirm compatibility before purchase, particularly for battery-pack diagnostics and programming functions.
• High-voltage EV systems can present serious electrical hazards. High-voltage diagnostics and battery-pack work should only be performed by appropriately trained and qualified technicians using suitable safety procedures.
• Optional expansion hardware and software packages are not necessarily included with the standard product.
• X431 FIX is a paid optional service.
• Software updates are included for 2 years according to the supplied specification.
• LAUNCH may expand or modify vehicle coverage and software functionality through future updates.
