Solar Wireless TPMS Tyre Pressure Monitoring System

4-Tyre Pressure & Temperature Monitor with LCD Display, Wireless Sensors and Audible Alerts

Monitor your vehicle’s tyre pressure and temperature with this wireless Tyre Pressure Monitoring System (TPMS). Designed for compatible cars, SUVs, sedans and pickups, the system displays information from four tyres on a clear colour LCD screen.

With solar and USB charging options, wireless sensor communication and automatic alerts for low pressure, high temperature, air leakage and low battery, it helps drivers identify potential tyre problems during everyday journeys.

General Details

• Product Type: Wireless Tyre Pressure Monitoring System
• Brand: Unbranded
• Display: Colour LCD digital screen
• Tyre Monitoring: 4 tyres
• Charging: Solar / USB
• Sensor Connection: Wireless
• Transmission Frequency: 433.92 MHz
• Pressure Range: 0-5.0 bar
• Operating Voltage: 2.1-3.6V
• Waterproof Rating: IP67 for compatible sensor components
• Operating Temperature: -40°C to 90°C
• Storage Temperature: -40°C to 100°C
• Transmit Power: Less than 10 dBm
• Temperature Resolution: Approximately 2°C under specified conditions
• Housing Material: ABS

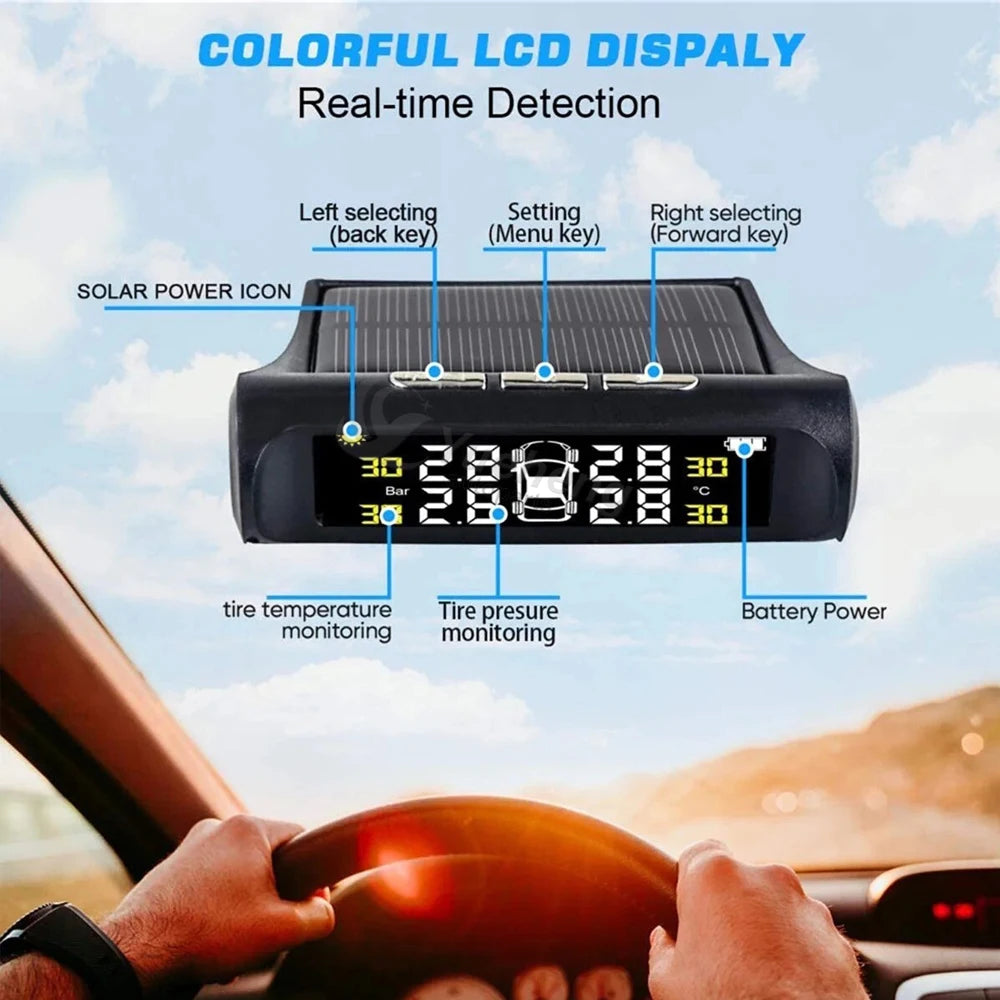

Real-Time Monitoring for Four Tyres

The system monitors pressure and temperature across four tyres, displaying the available information on its colour LCD screen.

This allows drivers to check tyre conditions conveniently and identify readings that may require attention.

Designed for compatible passenger vehicles, the system is suitable for everyday driving, longer journeys and routine tyre maintenance.

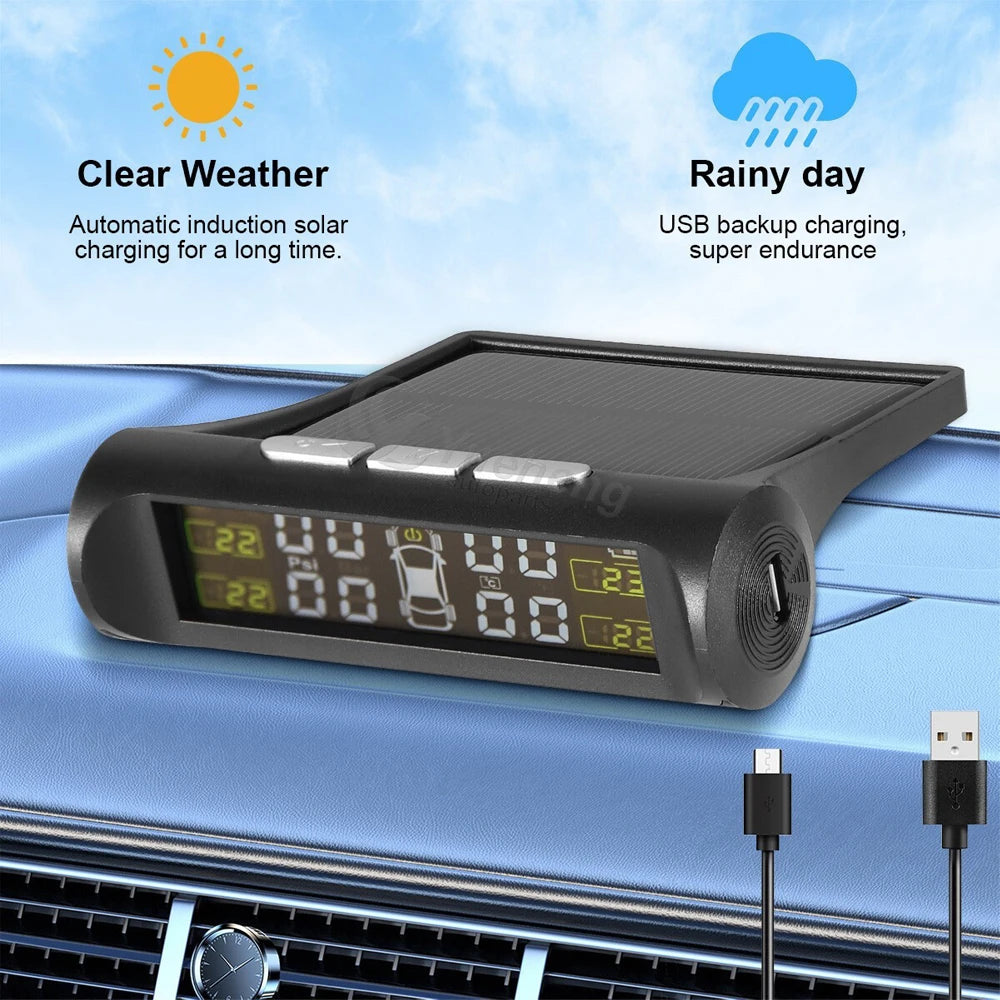

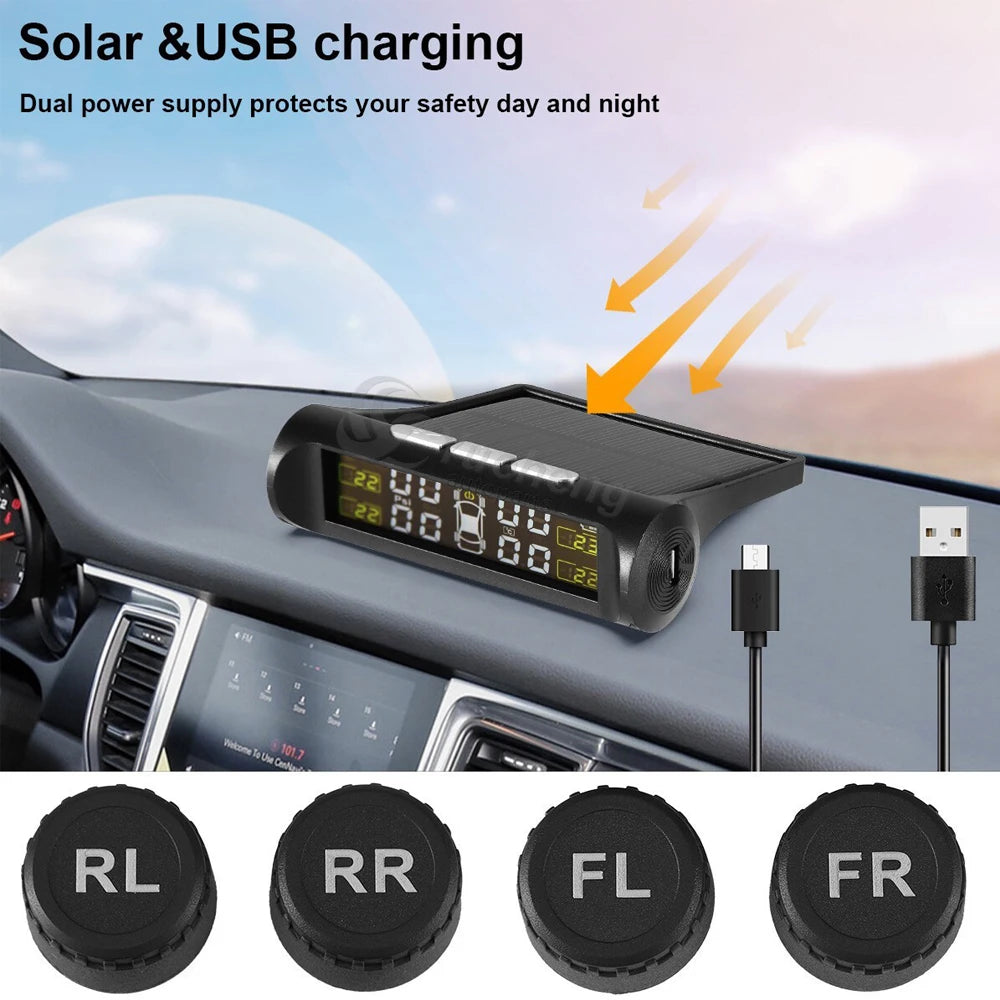

Solar & USB Charging

The monitoring display supports solar charging and USB charging, providing two charging options depending on available conditions.

Solar charging can help maintain the display's battery charge when sufficient sunlight is available, while USB charging provides an alternative when required.

Charging performance depends on sunlight, usage and operating conditions.

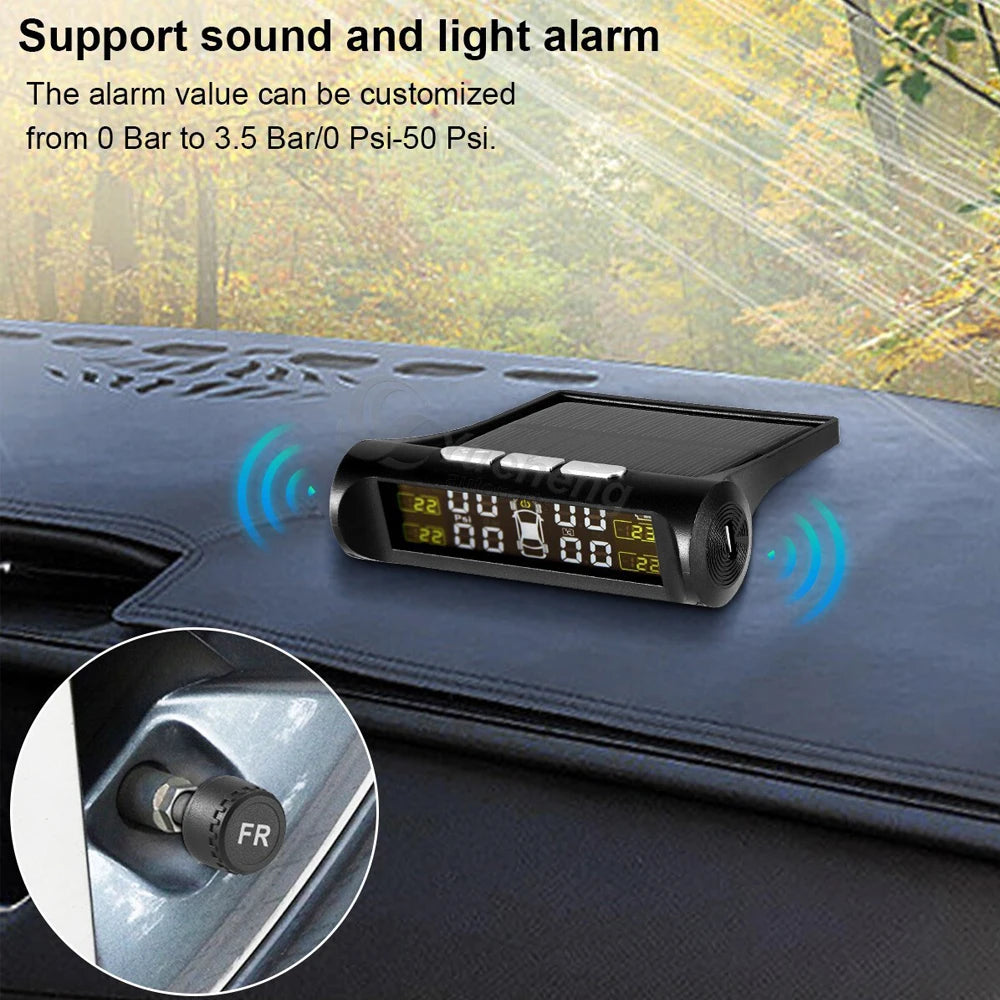

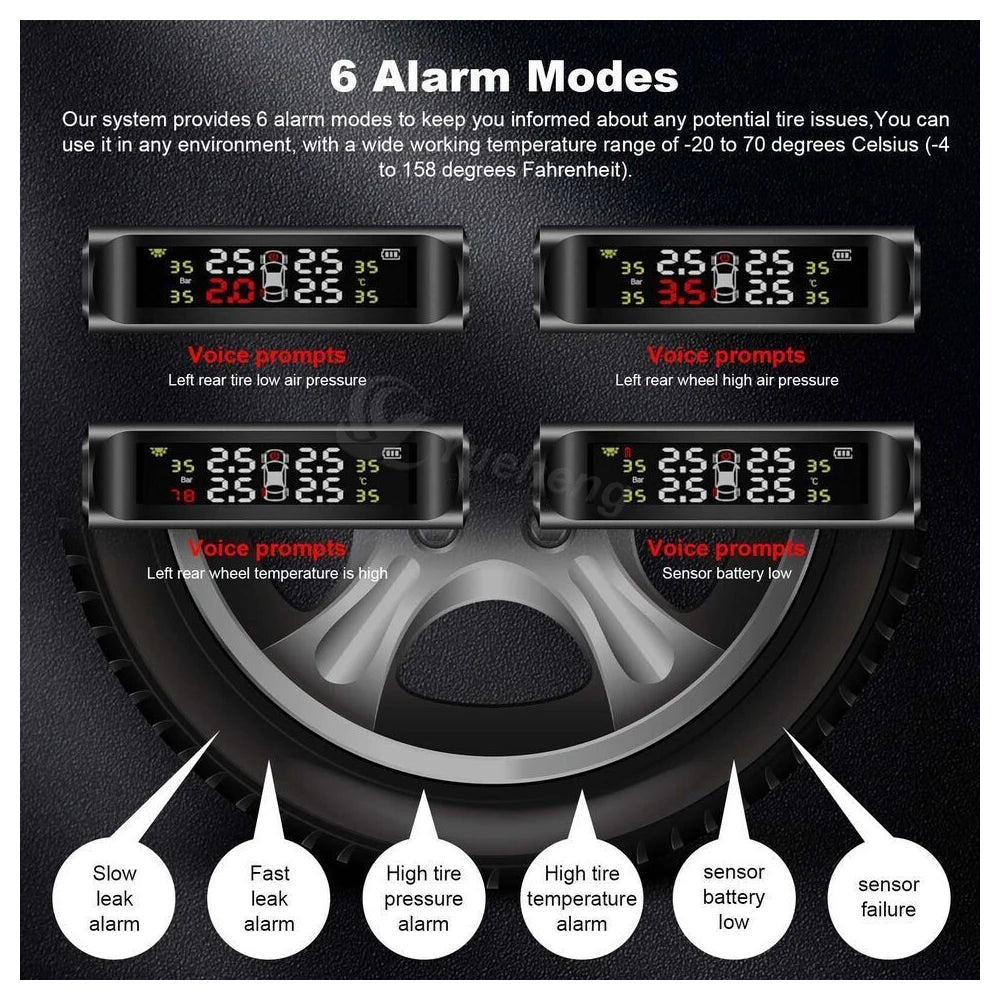

Pressure & Temperature Alerts

The system provides alerts for several tyre-related conditions, helping drivers identify potential problems.

• Low Pressure Alert: Warns when tyre pressure falls below the configured threshold.
• High Temperature Alert: Alerts the driver when tyre temperature becomes excessive.
• Air Leakage Alert: Helps identify potential pressure loss.
• Low Battery Alert: Indicates when a compatible sensor or system battery requires attention.

Respond promptly to warnings and inspect the tyre when necessary. The system supplements regular tyre checks rather than replacing them.

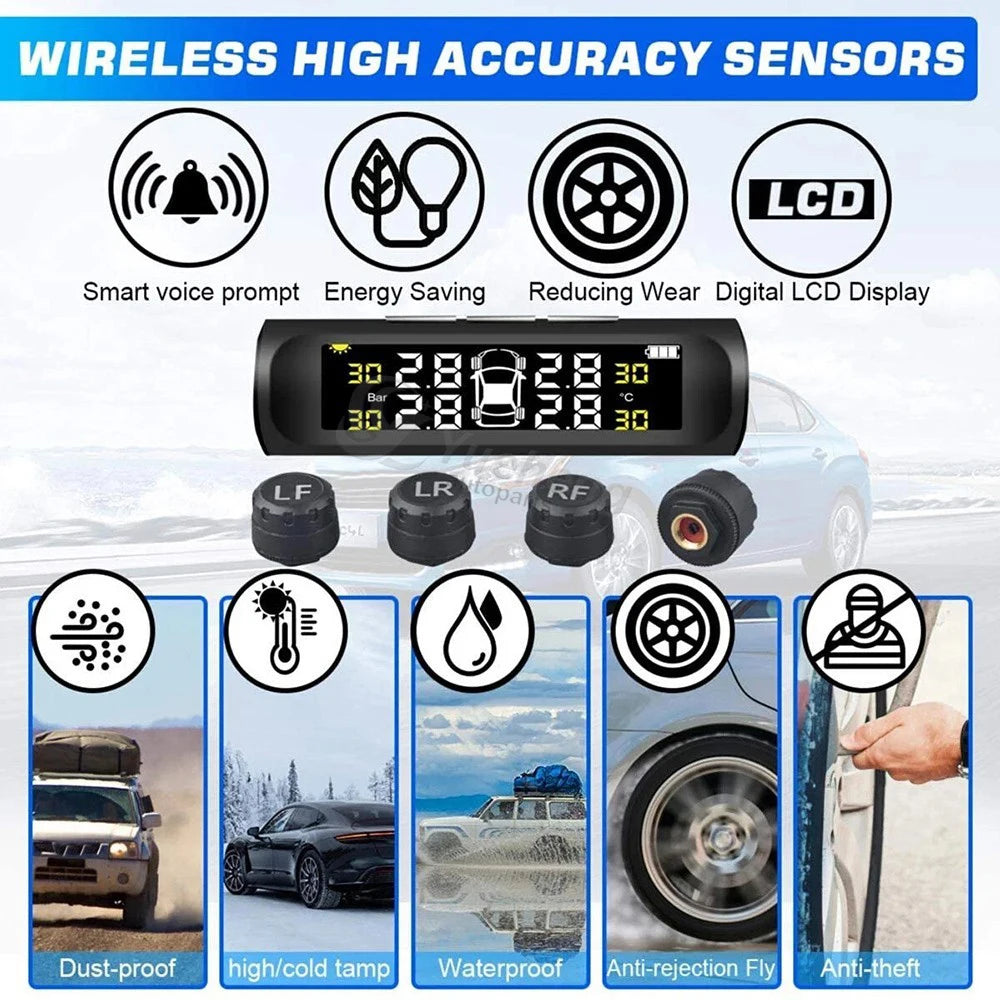

Wireless Sensor Communication

The wireless sensors transmit tyre information to the display at 433.92 MHz, reducing the need for wiring between the monitored tyres and the screen.

The system is designed to simplify installation and provide convenient monitoring while driving.

Automatic Start & Stop

The system features a shock-activated operating function that detects vehicle movement and wakes the monitoring system automatically.

This reduces the need to manually switch the display on and off during normal use.

Durable Sensor Design

The specified IP67 waterproof rating and broad operating temperature range are intended to support use in varied weather conditions.

The system is specified for operating temperatures from -40°C to 90°C, with a storage temperature range of -40°C to 100°C.

These ratings should be confirmed for the individual display and sensor components before installation in demanding environments.

Applications

Designed for compatible:

• Sedans
• Hatchbacks
• SUVs
• Pickup trucks
• Other compatible passenger vehicles

Specifications

• Product Type: Wireless TPMS
• Brand: Unbranded
• Display: Colour LCD
• Monitoring Capacity: 4 tyres
• Charging Methods: Solar / USB
• Transmission Frequency: 433.92 MHz
• Pressure Range: 0-5.0 bar
• Operating Voltage: 2.1-3.6V
• Waterproof Rating: IP67, as specified for compatible sensor components
• Operating Temperature: -40°C to 90°C
• Storage Temperature: -40°C to 100°C
• Transmit Power: Less than 10 dBm
• Temperature Resolution: Approximately 2°C under specified conditions
• Material: ABS
• Sensor Type: Wireless
• Alerts: Low pressure, high temperature, leakage and low battery

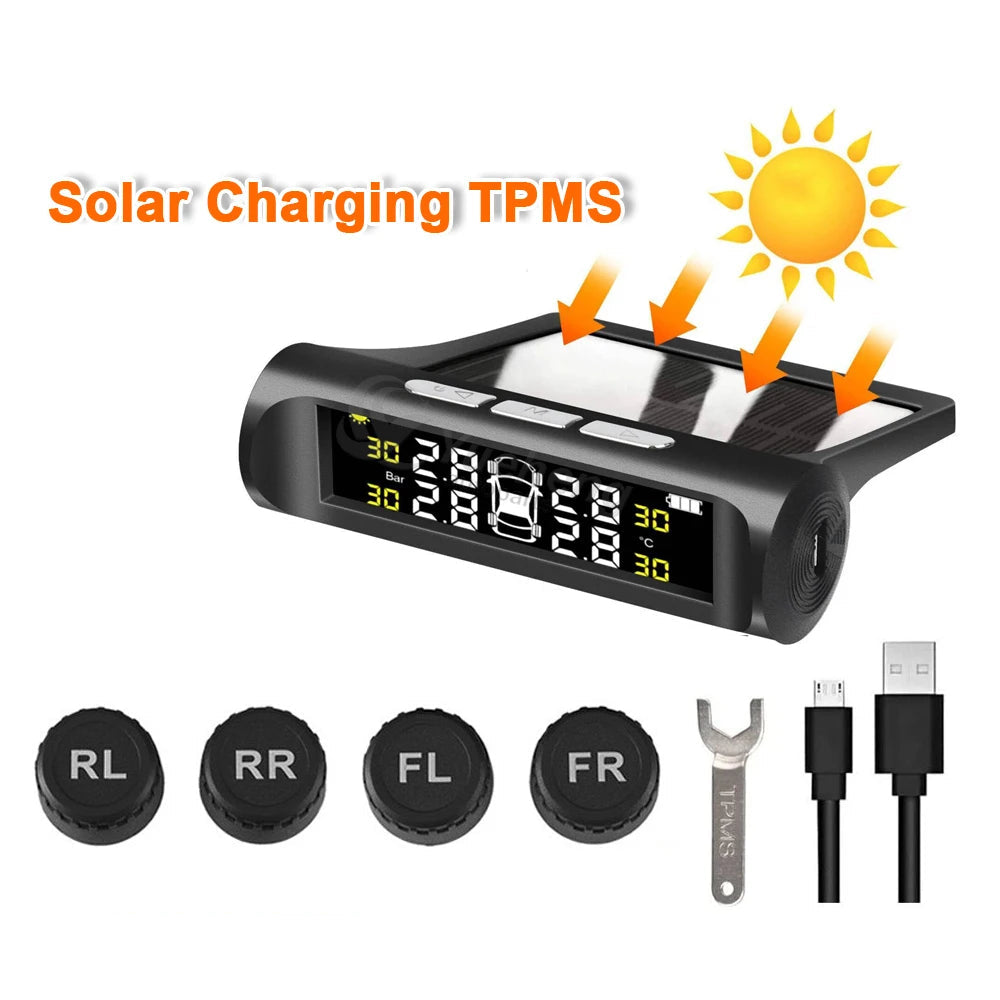

Package Includes

• 1 × Solar-Compatible TPMS Display
• 4 × Wireless Tyre Sensors, subject to the selected configuration
• Charging accessories and mounting components, as supplied with the selected package

Please confirm the exact package contents and sensor type before publishing, as the supplier has not provided a complete itemised packing list.

Important Notes

This TPMS is designed to supplement routine tyre pressure checks. It does not replace manual pressure verification, tyre inspections or vehicle maintenance.

Confirm compatibility with your vehicle before ordering. Although the supplier advertises broad vehicle compatibility, fitment may vary according to wheel configuration, valve type and vehicle requirements.

The stated 0-5.0 bar pressure range is approximately 0-72.5 PSI. Confirm that this range is suitable for your vehicle's recommended tyre pressures.

Professional installation is recommended where required, particularly for sensors that need wheel or tyre access. Follow the supplied installation instructions and ensure all sensors are securely fitted.

Solar charging performance depends on light exposure. USB charging may be needed when sunlight is insufficient.
